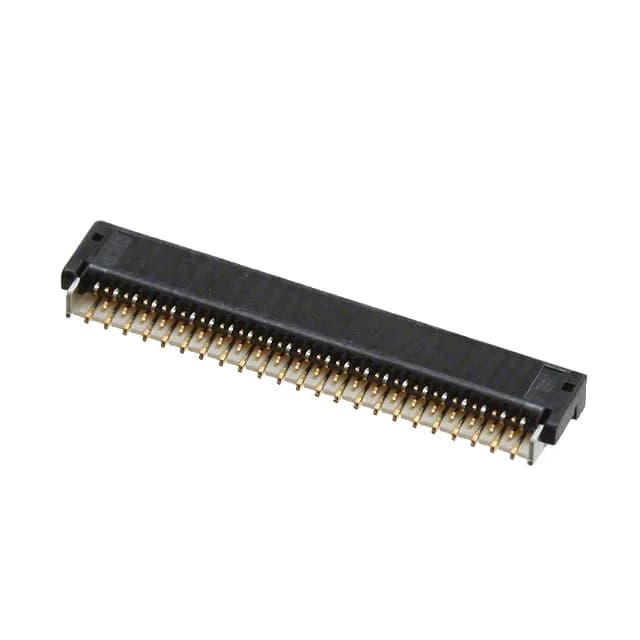

TE Connectivity AMP Connectors 1-2013496-8
MPN1-2013496-8
Obsolete
$2.3200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.2A |
| Operating temperature | -25°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Height above board | 0.047\" (1.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.012\" (0.30mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 45 |
