TE Connectivity AMP Connectors 1-2029265-2 — Pin Headers

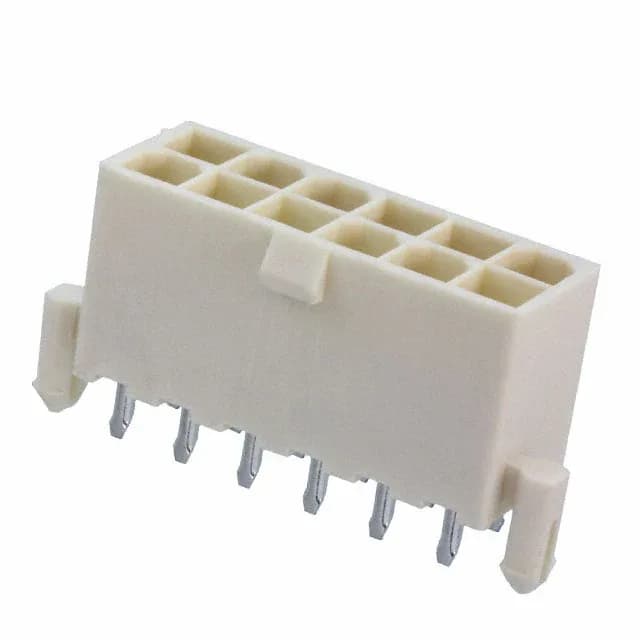

1-2029265-2 TE VAL-U-LOK Header 12 Pos 4.2mm

MPN1-2029265-2
Active

TE Connectivity AMP Connectors VAL-U-LOK, Board to Cable/Wire, Header, 12 Positions, 4.20mm Pitch, 2 Row, Through Hole, Solder, Shrouded - 4 Wall, Locking Ramp, Board Lock, Glow Wire Compliant, -40°C ~ 105°C, 600VAC

$1.4200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesVAL-U-LOK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-2029265-2 key specifications
ParameterValue
SeriesVAL-U-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorWhite
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0

All specifications

1-2029265-2 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions12
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin

Product details

12-Position Dual-Row 4.20mm Pitch Header with Board Lock

The 1-2029265-2: This is a 12-position, dual-row, through-hole header from TE's VAL-U-LOK series, on 4.20mm pitch. It mates with the matching VAL-U-LOK receptacle family — the same pitch and locking ramp geometry ensure a positive, audible mate.

Glow Wire and Temperature Range for Lighting and Industrial

Glow wire compliant means it passes the IEC 60695-2-11 test at 750°C — a requirement for lighting fixtures and household appliances. Voltage rating is 600VAC, and the tin-plated brass contacts suit moderate-cycle applications where cost per circuit matters more than gold's mating-cycle endurance.

Listed as Active with no end-of-life notice on record. ROHS3 compliant. Supplied in tray packaging.

Frequently asked questions

Is 1-2029265-2 RoHS compliant and glow wire rated?

Yes, it is ROHS3 compliant and glow wire compliant per the features list. The polyamide housing is UL94 V-0 rated.

What is the mating receptacle for 1-2029265-2?

It mates with any VAL-U-LOK receptacle housing on 4.20mm pitch that uses the same locking ramp. The receptacle accepts the matching crimp terminal — confirm the wire gauge and current rating against your application.
