It uses a 3.50mm pitch and 3.30mm row spacing across two rows, accepting tab-style crimp terminals — the male side of the D-1500 system.
Wiring It Up: Contacts and Mating Half
This plug housing takes tab-style crimp contacts (the male terminal).

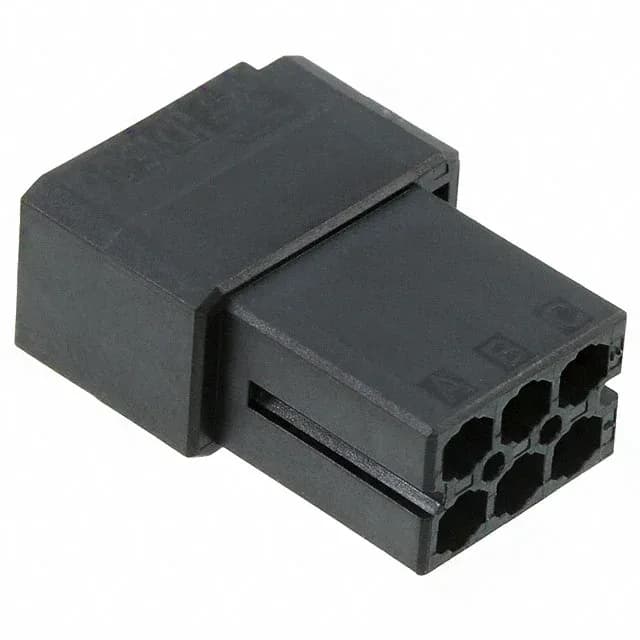

TE Dynamic D-1500 1-2040444-2 Plug Housing, 6 Pos, 3.50mm
MPN1-2040444-2
Active
TE Connectivity Dynamic D-1500 series plug housing, 1-2040444-2, 6 circuits, 2 rows, 3.50mm pitch, 3.30mm row spacing, free-hanging inline, crimp termination, black thermoplastic, -55°C to 105°C, contacts not included.
$1.2100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-1500
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-1500 |
| Type | Tab |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Row spacing | 0.130\" (3.30mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 6 |
Product details
Frequently asked questions
What contacts are used with 1-2040444-2?
The 1-2040444-2 accepts tab-style crimp contacts (male terminals), which are ordered separately. The contacts are not included with the housing; select the appropriate TE Dynamic D-5000 or D-3000 crimp tab terminal for your wire gauge and current rating.
What is the mating part for 1-2040444-2?
The mating half is a Dynamic D-1500 series receptacle housing with female socket contacts, same 3.50mm pitch and 2-row configuration. The exact receptacle order code depends on your position count — match the 6-circuit count for a direct mate.
Where can I buy 1-2040444-2?
This part is active and sourced per RFQ.
