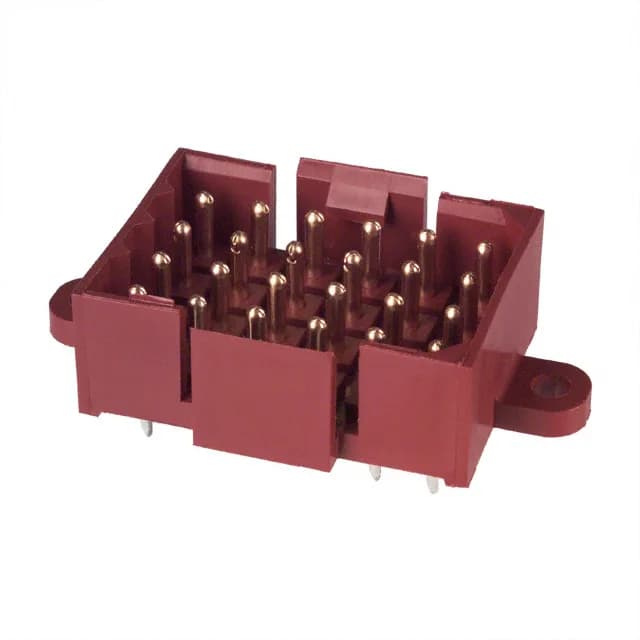

TE Connectivity AMP Connectors Metrimate series, 1-206763-3, header, 24 positions, 5.00 mm pitch, 4-row, shrouded - 4 wall, latch lock, through hole, solder termination, gold mating finish, 7.5 A, 600 V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Brass |
| Insulation color | Black, Red |
| Insulation height | 0.464\" (11.79mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 4 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 24 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.200\" (5.08mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-206763-3 is a 24-position, 4-row, shrouded header from TE Connectivity's Metrimate series, on a 5.00 mm pitch.
This header mates with a Metrimate receptacle (female housing with crimp terminals) of matching 24-position, 4-row, 5.00 mm pitch layout. The latch lock provides audible positive retention under vibration.
Yes, the 1-206763-3 is a shrouded header with 4-wall protection, reducing the risk of pin damage during handling and mating.
The mating pitch is 0.197" (5.00 mm) with the same row spacing, giving a 4-row grid that matches standard Metrimate receptacles.
It mates with a Metrimate receptacle housing of matching 24-position, 4-row, 5.00 mm pitch, using the latch lock for retention.
Yes, it is ROHS3 compliant.
