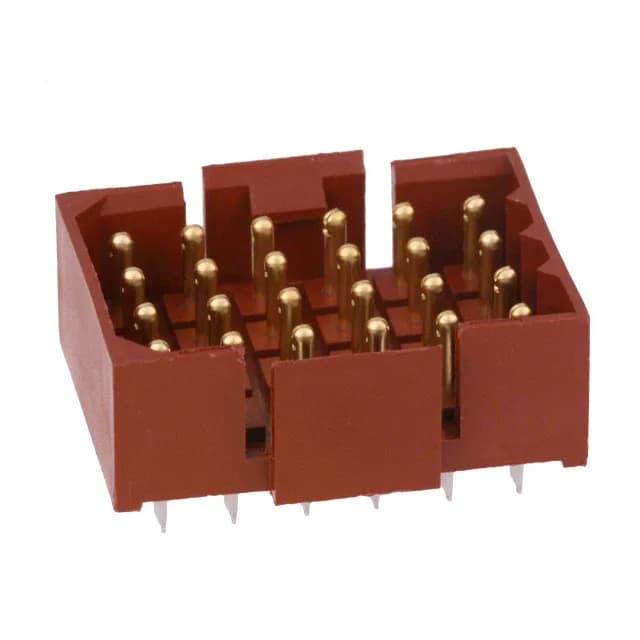

TE Connectivity Metrimate 1-206763-4, 24-circuit 4-row 5.00mm pitch header, board-to-board or cable style, latch lock fastening with 4-wall shroud, gold-plated mating contacts (30.0µin), tin solder-post finish (150.0µin), rated 7.5A per circuit at 600V, through-hole mount, -55 to 130°C, UL94 V-0, ROHS3.
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Brass |
| Insulation color | Black, Red |
| Insulation height | 0.464\" (11.79mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 4 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 24 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.200\" (5.08mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-206763-4: This is a 24-position, 4-row header on a 5.00 mm pitch, with a row spacing of 5.00 mm. The 4-wall shroud and latch lock fastening mean the mating receptacle is guided and locked in place — no accidental disconnection under vibration.
This header mates with a Metrimate receptacle (female housing with crimp terminals). Termination is solder through-hole.
Yes, it is listed as ROHS3 compliant.
It mates with a Metrimate receptacle (female housing with crimp terminals). The latch lock and 4-wall shroud are designed for that series.
Yes, the listed applications include Automotive, General Purpose, and Industrial. The -55°C to 130°C temperature range and UL94 V-0 housing support underhood and interior environments.
