TE Connectivity AMP Connectors 1-206852-1
MPN1-206852-1
Active

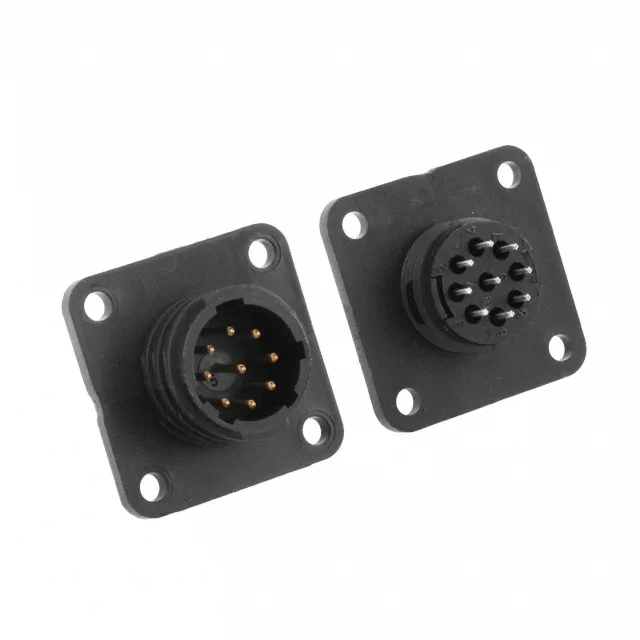

CONN RCPT MALE 9POS GOLD SOLDER
$19.15Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCPC Series 2
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CPC Series 2 |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 250V |
| Current rating | 7.5A |
| Mounting feature | Flange |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Shell material | Thermoplastic |
| Primary material | Plastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Orientation | Keyed |
| Termination | Solder |
| Applications | General Purpose |
| Positions | 9 |
| Shell size - insert | 11-9 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
