12-position 3-row vertical header, 5.00 mm pitch

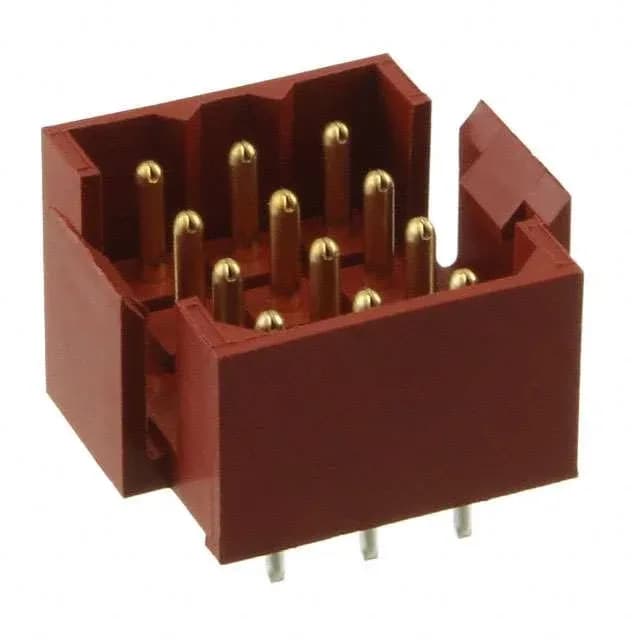

The 1-207120-1: The latch lock fastening and full 4-wall shrouding protect the circular male pins during mating and resist vibration in automotive and industrial applications.
1-207120-1 TE Metrimate 12-Position 5mm Pitch Header
MPN1-207120-1
Active
TE Connectivity Metrimate 1-207120-1, 12-position 3-row board-to-board header, 5.00mm pitch, 600V, 7.5A per circuit, latch lock, circular male pins, through-hole solder, gold-on-mating tin-on-post plating, UL94 V-0, ROHS3.
$17.8900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMetrimate
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Brass |
| Insulation color | Black, Red |
| Insulation height | 0.464\" (11.79mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 1-207120-1?
This header mates with a Metrimate receptacle housing that accepts the corresponding crimp terminals. The 3-row, 12-position layout and latch lock are the key interface dimensions.
Is 1-207120-1 RoHS compliant?
Yes, it is ROHS3 compliant.
