TE Connectivity AMP Connectors 1-207121-0 — Pin Headers

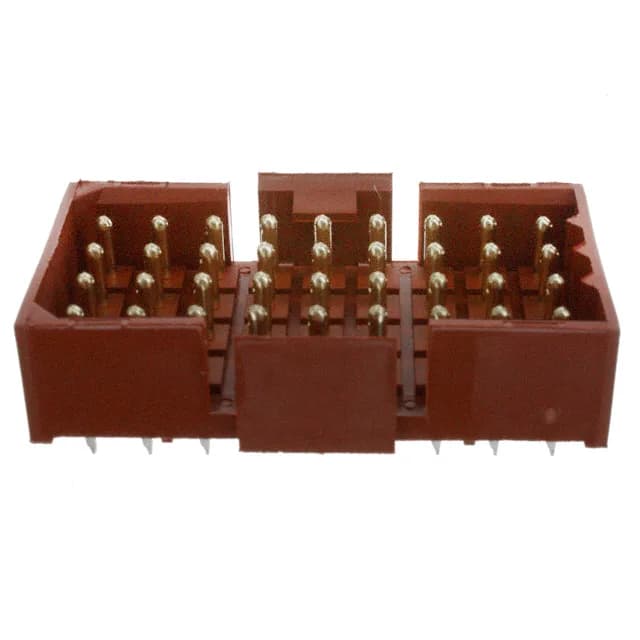

1-207121-0 TE Metrimate Header 36 Pos 5mm Pitch

MPN1-207121-0
Active

TE Connectivity AMP Connectors Metrimate header, 1-207121-0, 36 positions, 4 rows, 5.00 mm pitch, shrouded, latch lock, through hole, gold mating finish, 7.5 A, 600 V, -55°C to 130°C, UL94 V-0.

$44.1800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMetrimate
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-207121-0 key specifications
ParameterValue
SeriesMetrimate
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock
Voltage rating600V
Current rating7.5A
Operating temperature-55°C ~ 130°C
Contact materialBrass
Insulation colorBlack, Red
Insulation height0.464\" (11.79mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1-207121-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial
Contact shapeCircular
Rows4
Pitch0.197\" (5.00mm)
Positions36
Row spacing - mating0.197\" (5.00mm)
Contact finish - postTin
Contact length - post0.181\" (4.60mm)
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

36-Position, 4-Row, 5.00 mm Pitch Header

The 1-207121-0 is a 36-position, 4-row, 5.00 mm pitch header from the TE Metrimate series. Rated 7.5 A per contact at 600 V, with a gold mating finish (30.0 µin) and tin post finish (150.0 µin).

Footprint and Routing Fit

The 5.00 mm pitch and 0.197" row spacing give a 4-row grid that fits standard Metrimate mating receptacles. The 0.181" post length suits typical PCB thicknesses. The 36 positions are fully loaded, so no blank positions to manage in the BOM.

Frequently asked questions

What is the pitch of 1-207121-0?

The mating pitch is 5.00 mm (0.197") with the same row spacing.
