TE Connectivity AMP Connectors 1-207441-0 — Pin Headers

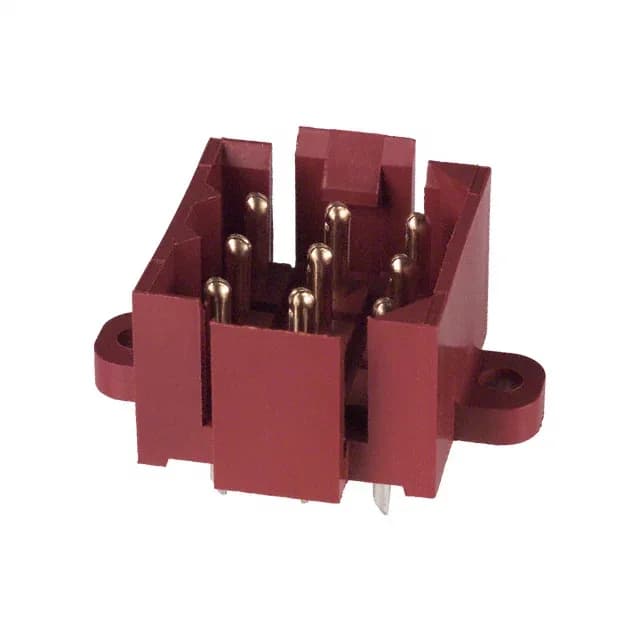

1-207441-0 TE Connectivity Metrimate Header, 9 Pos, 5 mm

MPN1-207441-0
Active

TE Connectivity Metrimate, 1-207441-0, 9-position 3-row board-to-board/cable header, 5.00 mm pitch, 7.5 A per circuit at 600 V, latch-lock 4-wall shrouded with mounting flange, gold mating contact (30.0 µin), tin solder post (150.0 µin), through-hole, tray.

$14.5100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-207441-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMetrimate
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-207441-0 key specifications
ParameterValue
SeriesMetrimate
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock
Voltage rating600V
Current rating7.5A
Operating temperature-55°C ~ 130°C
Contact materialBrass
Insulation colorBlack, Red
Insulation height0.464\" (11.79mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1-207441-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTray
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial
Contact shapeCircular
Rows3
Pitch0.197\" (5.00mm)
Positions9
Row spacing - mating0.197\" (5.00mm)
Contact finish - postTin
Contact length - post0.181\" (4.60mm)
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 1-207441-0: That current rating puts it above signal-only headers — it handles moderate power and signal in one connector, saving a separate power connector on the BOM.

5.00 mm pitch — generous routing clearance

Mating pitch and row spacing are both 5.00 mm (0.197 in), giving board designers room for wider traces or higher voltage clearance between circuits. The 4-wall shrouding and mounting flange add mechanical stability, and the latch lock secures the mating half against vibration back-out.

Gold on mating, tin on post — field-serviceable contacts

The solder post gets 150.0 µin tin for a reliable solder joint.

Product status is Active; TE continues to manufacture this order code. No last-time-buy or successor has been announced. ROHS3 compliant.

Frequently asked questions

What compliance documentation does 1-207441-0 carry?

The part is ROHS3 Compliant per the on-record lifecycle data; flammability is UL94 V-0 per the spec record.

What does 1-207441-0 mate with?

It accepts the matching Metrimate receptacle housing for board-to-cable or board-to-board configurations; the 4-wall shroud and latch lock are the keying and retention interface on the mating half.

Will 1-207441-0 drop into a panel specified for 1318699-3?

No — 1318699-3 uses a 4.20 mm pitch with 4 rows, while the 1-207441-0 is 5.00 mm pitch with 3 rows. The board footprint and pinout are not compatible.
