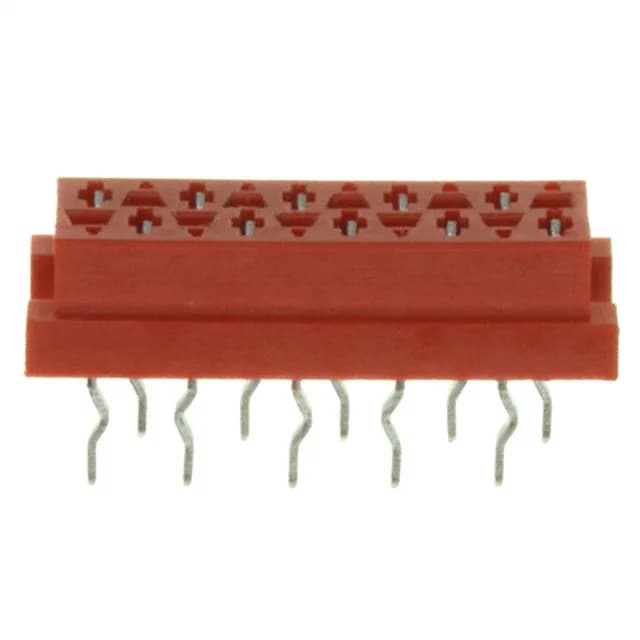

TE Connectivity AMP Connectors Micro-MaTch receptacle, order code 1-215079-0, 10 positions, dual row, 2.54 mm pitch, 100 VDC, tin-plated mating contacts, through hole, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Box (TB) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 1-215079-0 is the 10-circuit receptacle in TE's Micro-MaTch series, a forked-contact board-to-board or cable interconnect. It carries tin-plated mating contacts rated 100 VDC and mounts through hole with kinked pin solder termination.
