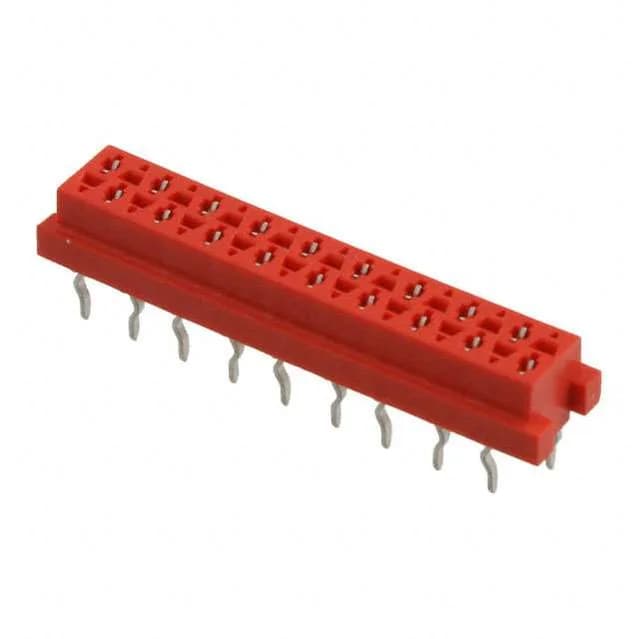

TE Connectivity AMP Micro-MaTch receptacle, order code 1-215079-8, 18 positions, dual row, 0.100" (2.54mm) pitch, 100 VDC, tin-plated mating contacts, through-hole, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 1-215079-8 is the 18-circuit receptacle in TE's Micro-MaTch series, a forked-contact design for board-to-board or cable connections.
The forked contact style and tin plating suit general-purpose and automotive applications where mating cycles are moderate.
RoHS and REACH compliance documentation can be requested at RFQ.
