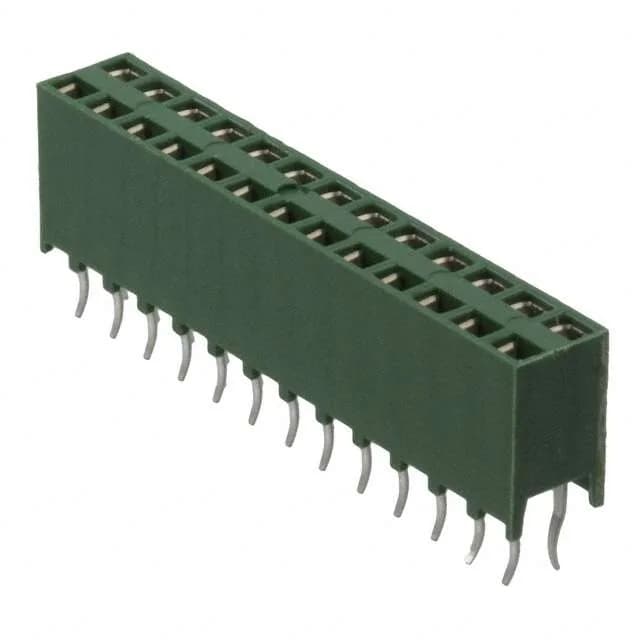

TE Connectivity AMP Connectors AMPMODU HV-100 receptacle, order code 1-215309-3, 26 positions, dual row, 0.100" (2.54mm) pitch, through hole, kinked pin solder termination, gold mating contacts, tin post contacts.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 1-215309-3: Through-hole mounting with kinked pin solder termination; the mating contacts are gold-plated (31.5µin / 0.80µm) over phosphor bronze, while the post contacts are tin-plated (98.4µin / 2.50µm).
RoHS and REACH compliance documentation is available from the manufacturer.
