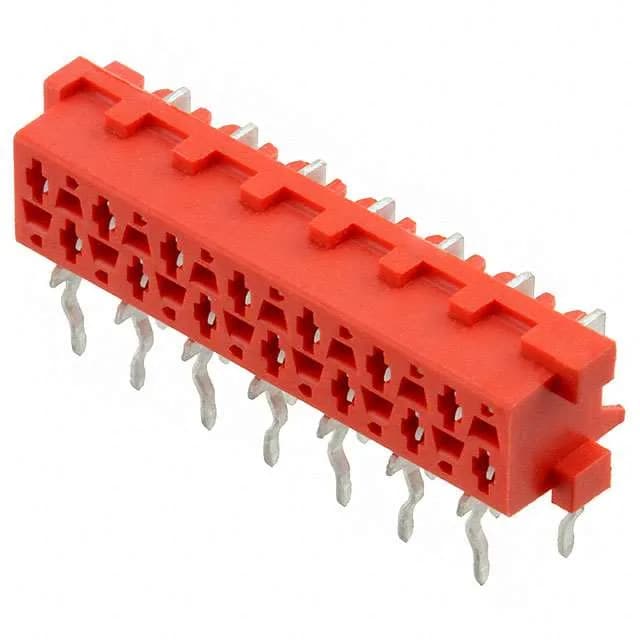

TE Connectivity AMP Connectors Micro-MaTch receptacle, order code 1-215460-4, 14 positions, dual row, 2.54 mm pitch, 100 VDC, tin-plated forked contacts, through-hole right-angle, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 1-215460-4: The forked contact design and tin plating suit general-purpose and automotive applications where moderate mating cycles are expected and the 100 VDC rating covers low-voltage signal and power distribution.
The listed style is Board to Board or Cable, meaning it can mate with a matching Micro-MaTch header on a PCB or terminate to a cable assembly.
