TE Connectivity AMP Connectors 1-215464-4 — Pin Headers

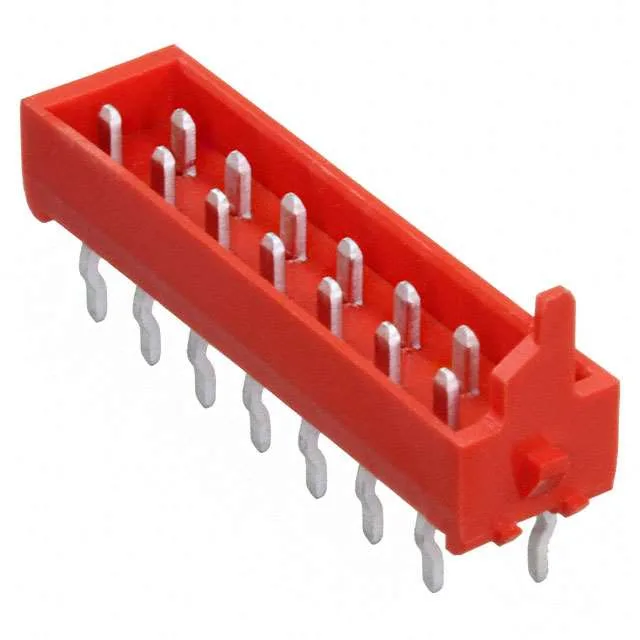

1-215464-4 TE Connectivity Micro-MaTch Header, 14 Pos

MPN1-215464-4
Active

TE Connectivity AMP Connectors Micro-MaTch series, 1-215464-4, board-to-board or cable header, 14 positions, 2.54mm pitch, dual row, latch lock, press-fit and solder termination, 1.5 A, 230 V, -40°C to 105°C.

$1.8800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-215464-4 key specifications
ParameterValue
SeriesMicro-MaTch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock
Voltage rating230V
Current rating1.5A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorRed
Insulation height0.142\" (3.60mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

1-215464-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin
Contact finish thickness - mating118.1µin (3.00µm)

Product details

The 1-215464-4 is a 14-position, dual-row, shrouded header from TE's Micro-MaTch series, on a 0.100-inch (2.54 mm) pitch.

Termination options and board fit

The press-fit option allows solderless assembly into plated through-holes, reducing heat stress on the board; the solder tail remains available as a fallback for rework or lower-volume builds. The contact post length is 0.122 inches (3.10 mm), which sets the board thickness range for press-fit. The insulation height of 0.142 inches (3.60 mm) leaves clearance for mating connectors.

Frequently asked questions

What is the mating connector for 1-215464-4?

The 1-215464-4 mates with a Micro-MaTch series receptacle (female connector) of the same 14-position, 2.54 mm pitch layout. The latch lock on the header engages with the receptacle's locking feature.

Does 1-215464-4 require special tooling for press-fit?

Press-fit termination typically requires an arbor press or pneumatic press with a dedicated insertion tool matched to the contact geometry. The solder tail option does not require special tooling beyond standard soldering equipment.
