Two-position shrouded header for board-to-cable/wire
The 1-2232000-2: Rated 250 VAC with tin-plated mating contacts, through-hole mounting, and solder termination — the latch holder fastening secures the mating housing.

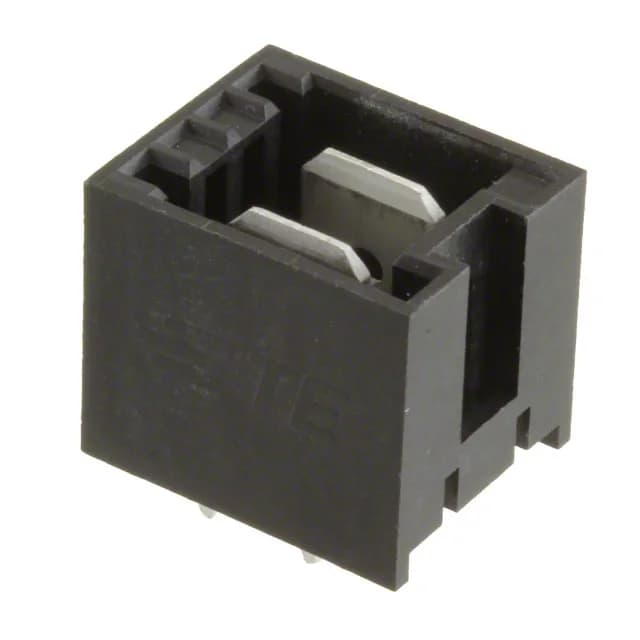

TE 1-2232000-2 Header, 2 Pos, 5.00mm, Shrouded
MPN1-2232000-2
Active
TE Connectivity AMP Connectors header, order code 1-2232000-2, 2 positions, single row, 5.00 mm pitch, 250 VAC, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall.
$0.6100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the listed style and package for 1-2232000-2?
The style is Board to Cable/Wire, and the package is Bulk.
