TE Connectivity AMP Connectors 1-2232044-4 — Pin Headers

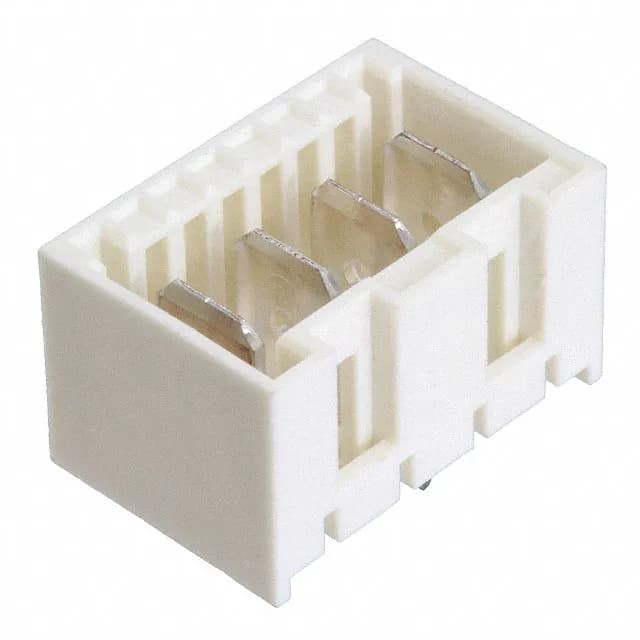

TE 1-2232044-4 Header, 4 Pos, 5mm Pitch, 20A

MPN1-2232044-4
Active

TE Connectivity 1-2232044-4 header, Board to Cable/Wire, 4 positions, 5.00mm pitch, 1 row, vertical, through hole, solder termination, silver mating contacts, 20A, 250VAC, UL94 V-0.

$1.3800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-2232044-4 key specifications
ParameterValue
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250VAC
Current rating20A
Operating temperature-40°C ~ 120°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0

All specifications

1-2232044-4 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows1
Pitch0.197\" (5.00mm)
Positions4
Contact finish - postSilver
Contact length - post0.138\" (3.50mm)
Contact finish - matingSilver

Product details

TE 1-2232044-4 — 4-Position Power Header, 5.00mm Pitch

It belongs to the TE 2232044 series of board-to-cable/wire power interconnects. Termination is solder to a 0.138" (3.50mm) post length, so the board footprint is a standard 5.00mm-pitch through-hole layout.

This is the male pin header half of a board-to-cable/wire interconnect. It mates with a TE 2232044-series receptacle housing that accepts crimp terminals. The natural (off-white) insulation color is standard for the series. Bulk packaging means it ships loose in a bag, not on a tape reel — fine for hand-load or low-volume production, but if you're running a pick-and-place line, check whether your feeder handles loose tubes or trays.

Frequently asked questions

Where can I buy 1-2232044-4 available via RFQ confirmation?

Contact the storefront with your BOM for a same-day quote.

Is 1-2232044-4 RoHS compliant?

Yes, the 1-2232044-4 is ROHS3 compliant per the manufacturer.
