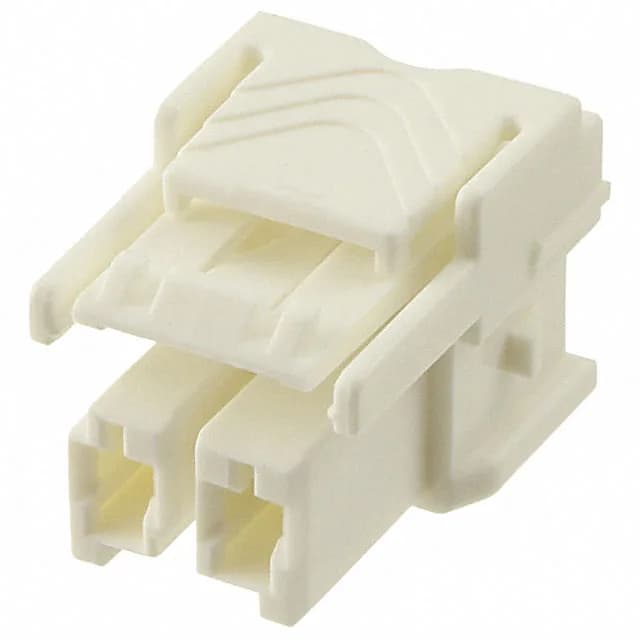

Power Triple Lock 2-Position Plug Housing, 6.00 mm Pitch
The TE Connectivity 1-2232265-1 is a 2-position plug housing from the Power Triple Lock series, designed for free-hanging in-line wire-to-wire or wire-to-board power interconnects. This is a housing only — contacts are not included. You order the female blade socket terminals separately and crimp them onto the wire before inserting into the cavities. The crimp termination and latch lock make this a field-serviceable connector: replace a damaged terminal without scrapping the whole harness, and the lock keeps it mated under vibration once it's clicked home.
What It Mates With and What Fits It
The 1-2232265-1 plug mates with the matching Power Triple Lock receptacle header (same 6.00 mm pitch, 2-position layout). The female blade socket terminals (sold separately) accept the wire gauge range specified in the terminal datasheet — typically 14-20 AWG for the Power Triple Lock series, but confirm the exact terminal part number for your wire size. The latch lock on the plug engages the ramp on the receptacle for a positive retention that won't back off from machine vibration.
