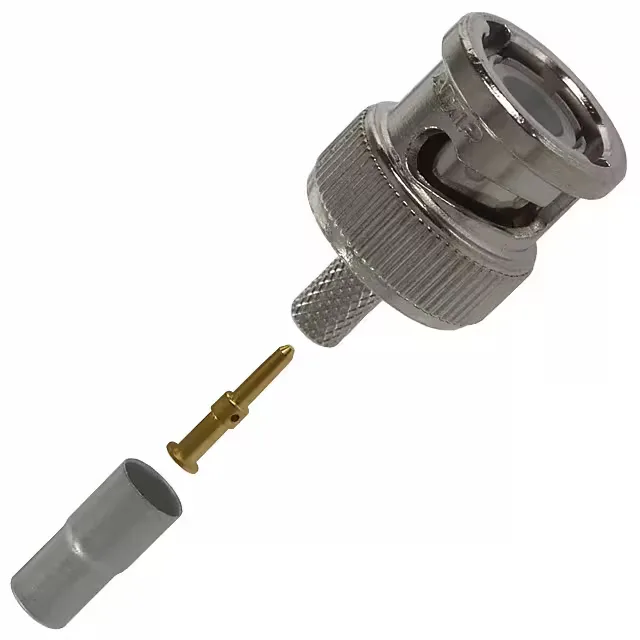

TE Connectivity BNC plug, male pin, 50 Ohm, 4 GHz, 500 mating cycles, crimp termination, includes contact and ferrule, bulk.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | Amphenol 21-597 |
| Operating temperature | -55°C~85°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 1-225395-0: This plug is specced for Amphenol 21-597 cable group — match the body to the reel before you start crimping.
The 0.2 dB insertion loss at 4 GHz is typical for a crimp BNC — nothing unusual, but if you need tighter loss spec at higher frequencies you step up to an N or SMA.
The listed cable group is Amphenol 21-597 — match the body to that cable OD before crimping.
