TE 1-225398-5 BNC Jack, 50 Ohm, 4 GHz, Panel Mount

MPN1-225398-5
Active

TE Connectivity 1-225398-5 BNC jack, female socket, 50 Ohm impedance, 4 GHz max frequency, panel mount bulkhead, crimp termination, RG-316 cable group, includes mounting hardware.

$0.8400Ref. price · indicative, final on quote
1-225398-5 datasheet
StockIn Stock (31)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-225398-5 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRD-316 Double Braid
Operating temperature-55°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes5 pcs - 1 Connector, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

BNC Bulkhead Jack for RG-316 — What Ships in the Kit

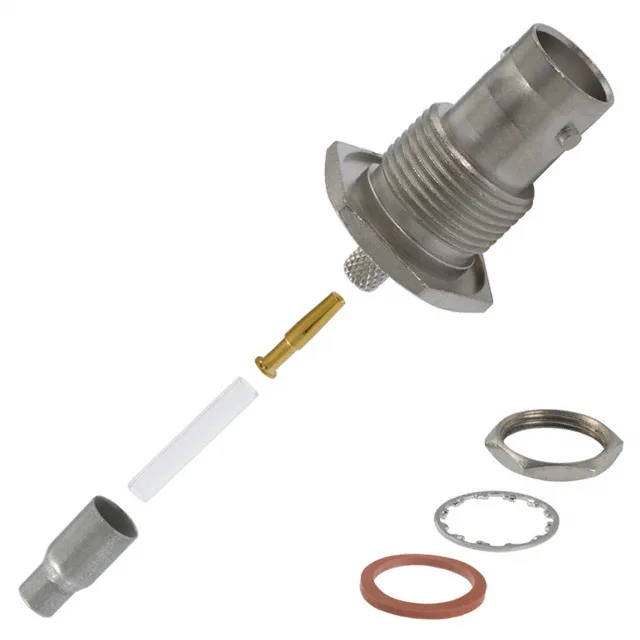

The 1-225398-5: The kit includes five pieces: the connector body, a ferrule, a gasket, a lockwasher, and a nut — so you don't need to order the mounting hardware separately.

This jack is specified for RD-316 double-braid cable. The shield is crimped, and the centre contact is also crimped.

Mounting and Environmental Fit

Panel mount via a bulkhead with a front-side nut — the included gasket seals the panel cutout, but the IP rating only applies when the jack is mated to a BNC plug with the bayonet lock fully engaged. The nickel-plated brass body and the PTFE dielectric mean this connector handles outdoor or industrial cabinet environments where condensation or mild washdown is present. Cap the open half when unmated to keep the centre contact and dielectric clean.
