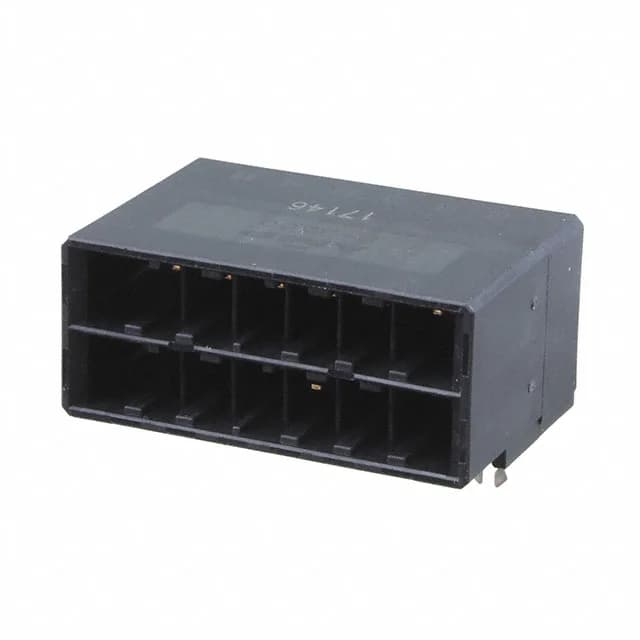

1-2299005-1 TE Connectivity Dynamic D3200M Header, 12 Pos

MPN1-2299005-1
Active

TE Connectivity AMP Connectors Dynamic D3200M header, 1-2299005-1, 12 positions, 5.08mm pitch, right-angle through-hole, shrouded 4-wall, gold-plated mating contacts, board lock, UL94 V-0.

$4.6600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-2299005-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D3200M
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-2299005-1 key specifications
ParameterValue
SeriesDynamic D3200M
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Voltage rating600V
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.727\" (18.47mm)
Insulation materialThermoplastic, Polyester
Material flammability ratingUL94 V-0

All specifications

1-2299005-1 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTube
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.200\" (5.08mm)
Positions12
Row spacing - mating0.300\" (7.62mm)
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingGold
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Right-angle header with board lock for vibration-prone wiring

The 1-2299005-1 is a 12-position, 5.08mm pitch header from TE's Dynamic D3200M series, designed for board-to-cable/wire applications where the cable exits parallel to the PCB. The right-angle orientation keeps the mating axis along the board surface, saving vertical space in enclosures.

5.08mm pitch, 12 circuits, gold mating interface

With a 5.08mm pitch and 0.300" (7.62mm) row spacing, this header provides generous clearance for routing traces between pins on standard 2-layer boards. The 12 positions are fully loaded, so every pin is present.

Frequently asked questions

How can I order 1-2299005-1 or check stock and pricing?

Submit an RFQ for 1-2299005-1. We source this active part across our distributor network and confirm current availability, lead time, and volume pricing at quote time — no figures on the page.

What is the mating connector for 1-2299005-1?

This header mates with a Dynamic D3200M series receptacle housing that accepts crimp terminals. The specific mating part number depends on your wire gauge and keying requirements — confirm the receptacle order code against the series catalog.

Is 1-2299005-1 compatible with the Dynamic D3200 series?

Yes, it is part of the Dynamic D3200M series. The M variant indicates a standard polarization; verify the receptacle's series code matches for proper keying.
