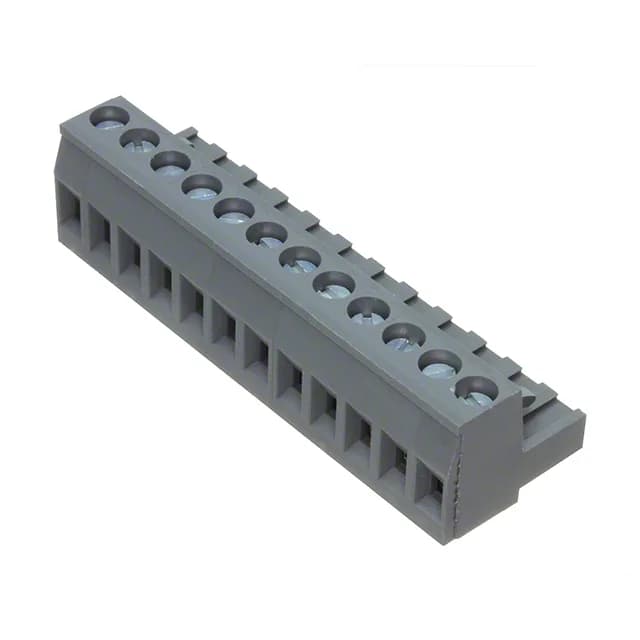

1-2305909-2 TE Connectivity WireMate Plug, 12 Pos, 5.00mm

MPN1-2305909-2
Active

TE Connectivity AMP Connectors WireMate, TB, Buchanan series plug, female sockets, 12 positions, 0.197" (5.00mm) pitch, 10 A, 300 V, screw termination, UL94 V-0, free hanging, 12-26 AWG, nickel contact finish.

$8.3300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-2305909-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-2305909-2 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesWireMate, TB, Buchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL10 A
Plug wire entry180°
Wire strip length7mm
Wire gauge or range - AWG12-26 AWG
ColorBlack
Contact materialCopper Alloy
Housing materialThermoplastic
Insulation height0.591\" (15.00mm)

All specifications

1-2305909-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesRetention Latches (Non-Wire Side)
Torque - screw0.5 Nm (4.4 Lb-In)
Number of levels1
Termination styleScrew
Positions12
Positions per level12
Contact mating finishNickel

Product details

What This 12-Position Screw Plug Does

The 1-2305909-2: This is a 12-position plug with female sockets from TE's WireMate, TB, Buchanan series — a free-hanging (in-line) screw-clamp terminal block that accepts 12-26 AWG wire. Rated 10 A at 300 V, it's built for control circuits, lighting, and general industrial power distribution where you need a reliable, field-serviceable termination.

Mating Half and Field Wiring

The plug wire entry is 180° (straight in-line), which keeps the cable bundle aligned with the connector axis. Retention latches on the non-wire side hold the mated pair together against vibration. The contact mating finish is nickel, which is standard for industrial screw-clamp connectors where the connection is made by the screw, not the contact interface.

Frequently asked questions

What is the torque specification for 1-2305909-2?

The screw torque is 0.5 Nm (4.4 Lb-In). Use a calibrated screwdriver to avoid over-tightening; the thermoplastic housing can crack if the torque is exceeded.

What header mates with 1-2305909-2?

This plug mates with a matching 12-position, 5.00 mm pitch pin header from the WireMate, TB, Buchanan series. The retention latches on the plug engage with the header's locking features to secure the mated pair.
