TE Connectivity AMP Connectors 1-2314924-6 — Female Socket Headers

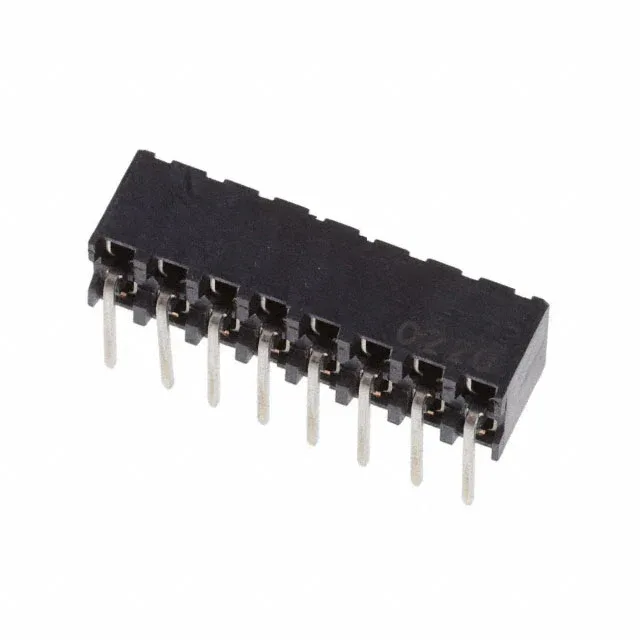

1-2314924-6 TE AMPMODU 16-Position 2.00 mm Right-Angle

MPN1-2314924-6
Active

TE Connectivity AMPMODU series, 1-2314924-6, 16-position dual-row board-to-board receptacle, 2.00 mm pitch, 2 A, gold mating finish, through-hole right-angle, UL94 V-0.

$1.7800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-2314924-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-2314924-6 key specifications
ParameterValue
SeriesAMPMODU
TypeFemale Socket
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating125V
Current rating2A
Operating temperature-40°C ~ 125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.161\" (4.10mm)
Insulation materialLiquid Crystal Polymer (LCP)

All specifications

1-2314924-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTape & Reel (TR)
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions16
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Contact finish - matingGold
Contact finish thickness - post12.0µin (0.30µm)
Contact finish thickness - mating3.94µin (0.100µm)

Product details

2.00 mm pitch, 16-position right-angle receptacle

The 1-2314924-6 is a 16-position, dual-row board-to-board receptacle from TE's AMPMODU series. The gold mating finish (3.94 µinch) over phosphor bronze contacts supports moderate mating cycles — adequate for equipment that sees periodic board swaps but not daily reconnects.

Right-angle mounting and board footprint

The 0.110-inch (2.79 mm) solder post length provides enough stand-off for through-hole soldering without protruding far below the board — a consideration when the opposite side has tight clearance.

Frequently asked questions

Where can I buy 1-2314924-6 and how is it quoted?

1-2314924-6 is sourced through independent distribution.

What is the pin pitch of 1-2314924-6?

The mating pitch is 0.079 inch (2.00 mm), with the same 2.00 mm row spacing. The board footprint requires 0.079-inch hole centers for the two rows.
