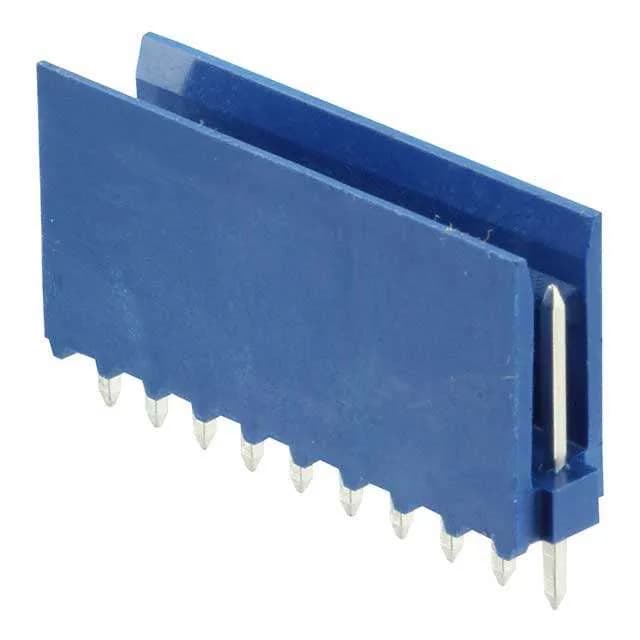

1-281695-0 TE Connectivity Header 10 Pos 2.54mm Pitch

MPN1-281695-0
Active

TE Connectivity AMP Connectors HE13/HE14 series, 1-281695-0, board-to-cable/wire header, 10 positions, single row, 0.100" (2.54mm) pitch, shrouded - 2 wall, friction lock, through-hole solder termination, tin-plated contacts, UL94 V-0 housing, -40°C to 100°C operating range.

$1.8600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-281695-0 datasheet (PDF)
RoHSRoHS Compliant
SeriesHE13/HE14
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-281695-0 key specifications
ParameterValue
SeriesHE13/HE14
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Operating temperature-40°C ~ 100°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.449\" (11.40mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

1-281695-0 additional specifications
ParameterValue
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions10
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Overall contact length0.492\" (12.50mm)
Contact finish - matingTin
Contact length - mating0.276\" (7.00mm)

Product details

10-Position Single-Row Header for Wire-to-Board

Its 0.100-inch (2.54mm) pitch matches the standard grid for legacy and new designs, and the shrouded - 2 wall housing protects the male pins during handling and mating.

Footprint and Mating Compatibility

The header uses through-hole solder termination with a contact length - post of 0.114 inches (2.90mm) and an overall contact length of 0.492 inches (12.50mm). The mating contact length is 0.276 inches (7.00mm), which mates with standard HE14 crimp-socket receptacles.

Frequently asked questions

What is the mating connector for 1-281695-0?

The 1-281695-0 mates with HE14 series crimp-socket receptacles that accept 0.100-inch pitch, single-row housings with a friction-lock feature. The mating contact length of 0.276 inches (7.00mm) is standard for the HE14 system.
