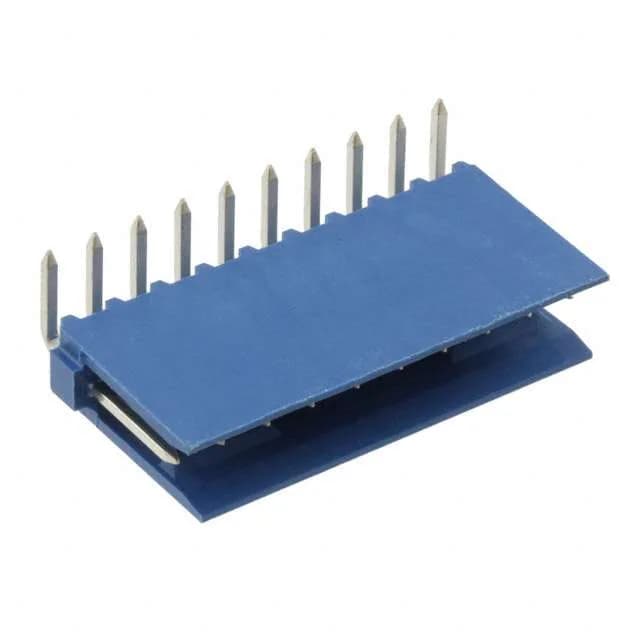

1-281698-0 TE Connectivity Header, 10 Pos, 2.54mm, R/A

MPN1-281698-0
Active

TE Connectivity AMP Connectors HE13/HE14 series, 1-281698-0, Board to Cable/Wire header, 10 positions, 0.100" (2.54mm) pitch, single row, shrouded-2 wall, right-angle through-hole, tin-plated male pins, friction lock, UL94 V-0, -40°C to 100°C.

$1.6600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHE13/HE14
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-281698-0 key specifications
ParameterValue
SeriesHE13/HE14
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Operating temperature-40°C ~ 100°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

1-281698-0 additional specifications
ParameterValue
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions10
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Contact finish - matingTin
Contact length - mating0.276\" (7.00mm)

Product details

Right-angle through-hole header for board-edge wire routing

The 1-281698-0 is a 10-position, single-row header from TE's HE13/HE14 series, designed for board-to-cable/wire connections.

Pitch, position count, and plating for BOM fit

With 10 positions all loaded and a single-row layout, this header fits a compact footprint.

This header mates with HE13/HE14 series socket housings using crimp terminals (not included). The through-hole solder termination requires a 0.114" (2.90mm) post length for the PCB hole — confirm board thickness and solder fillet clearance. The contact length on the mating side is 0.276" (7.00mm), providing sufficient engagement depth for a secure connection with the matching receptacle.

Frequently asked questions

Is 1-281698-0 RoHS compliant?

Yes, 1-281698-0 is ROHS3 compliant.

What is the pitch of connector 1-281698-0?

The pitch is 0.100" (2.54mm), standard for 0.1-inch grid layouts.

Is 1-281698-0 a shrouded header?

Yes, it is a shrouded-2 wall header, meaning the plastic shroud surrounds the pins on two sides to prevent accidental shorting and guide the mating receptacle.
