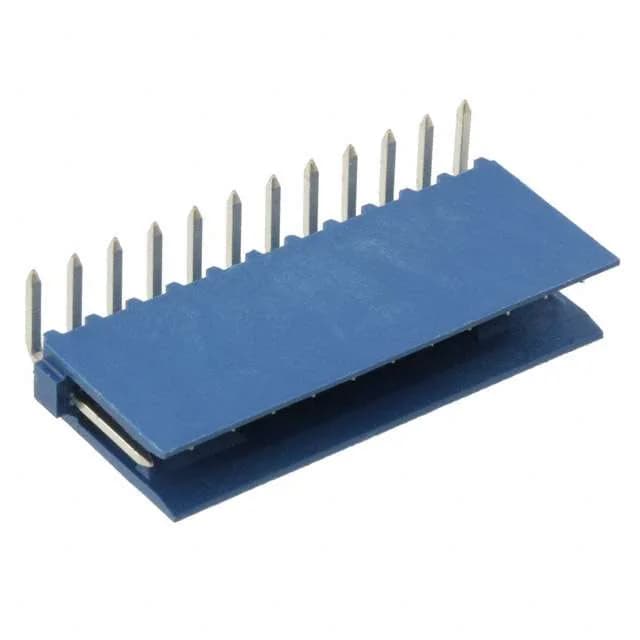

TE Connectivity AMP Connectors HE13/HE14 series, 1-281698-2, Board to Cable/Wire header, 12 positions, single row, 0.100" (2.54mm) pitch, shrouded - 2 wall, right-angle through-hole, friction lock, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | HE13/HE14 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 100°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.276\" (7.00mm) |
The closest functional alternative is 1-292164-1, an 11-position single-row header from the CT series with a 0.079" (2.00mm) pitch and a detent lock. The 1-281698-2 offers one more circuit and a wider 0.100" pitch, which may simplify routing for legacy designs. The detent lock on the CT series provides a different retention feel; the friction lock on the HE13/HE14 is a simpler, lower-insertion-force design.
This header mates with HE13/HE14 series IDC receptacles and crimp housings that accept 0.100" (2.54mm) pitch contacts. The friction lock engages with the corresponding slot on the receptacle. Confirm the mating part number from the series catalog.
The square pins and 0.025" square profile are compatible with most IDC receptacles designed for that pitch.
