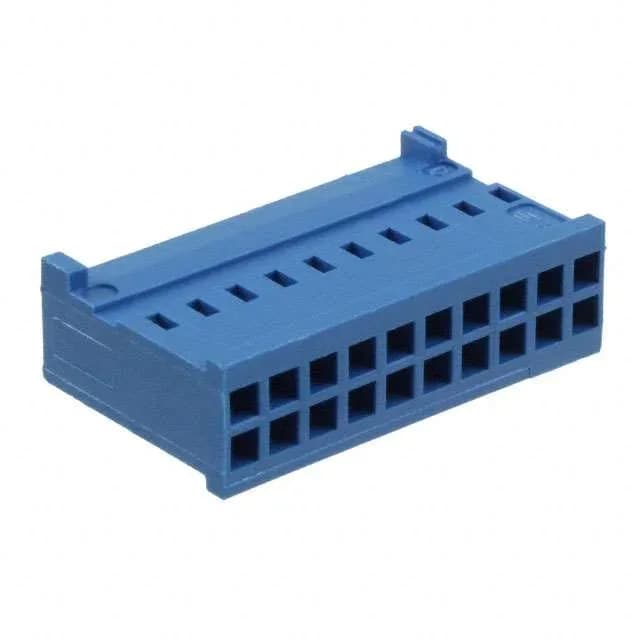

TE Connectivity HE13/HE14 series receptacle housing, 20 positions, 0.100" (2.54mm) pitch, dual-row, free-hanging, crimp termination, blue PBT, detent lock.
| Parameter | Value |
|---|---|
| Series | HE13/HE14 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Operating temperature | -55°C ~ 125°C |
| Color | Blue |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 20 |
It mates with any 0.100" (2.54mm) pitch, dual-row pin header that fits the 20-position layout. The detent lock engages with the corresponding latch on the mating header to prevent accidental unmating in service. For a complete wire-to-board assembly, pair this housing with the matching crimp terminals and a 2x10 pin header.
1-281839-0 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time against your BOM quantity.
No — the listing explicitly notes contacts are not included. The crimp terminals for the female socket must be ordered separately as a line item.
