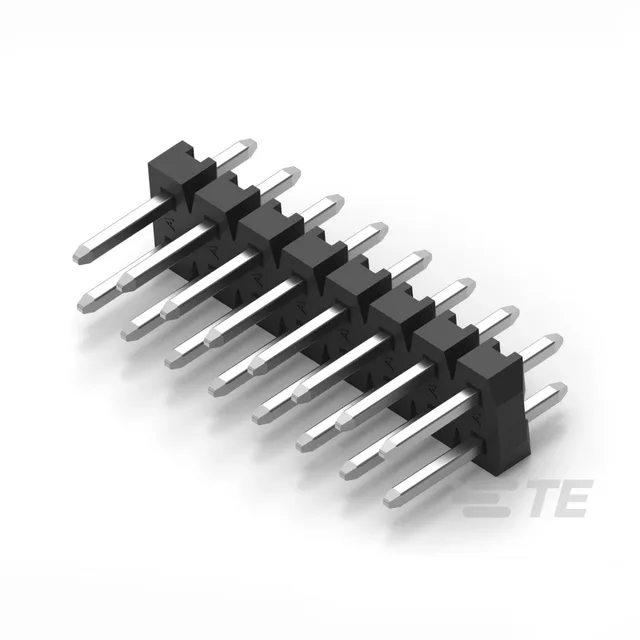

TE Connectivity AMPMODU 2MM, Board to Board, Header Breakaway, 14 circuits, 2.00 mm pitch, 2 A, tin plating, through hole, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU 2MM |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.80mm) |
| Overall contact length | 0.327\" (8.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 12.0µin (0.30µm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
The 1-2823112-4: Through-hole termination with a 0.110" (2.80 mm) post length gives a solid solder joint into the plated through-hole — the board sees the mechanical anchor before the signal path.
The 2.00 mm pitch, 14-position, unshrouded, through-hole configuration is specific to this order code. Confirm the BOM position count and mating half before substituting.
