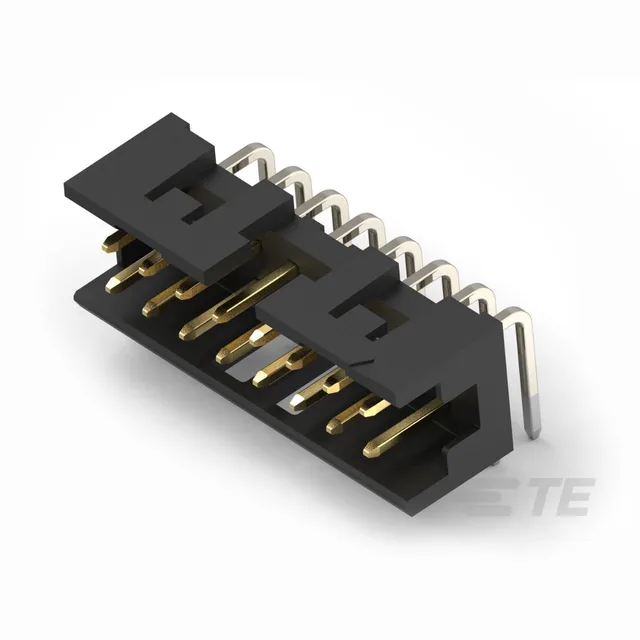

TE Connectivity AMP Connectors AMPMODU 2MM header, order code 1-2823357-6, 16 positions, dual row, 2.00 mm pitch, 2 A, 125 VAC/DC, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU 2MM |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.244\" (6.20mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.80mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 157.5µin (4.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-2823357-6: It mounts through-hole right-angle, carries gold-plated mating contacts rated 2 A and 125 VAC/DC, and includes a detent lock and 2-wall shrouding for positive retention and mis-mate protection.
