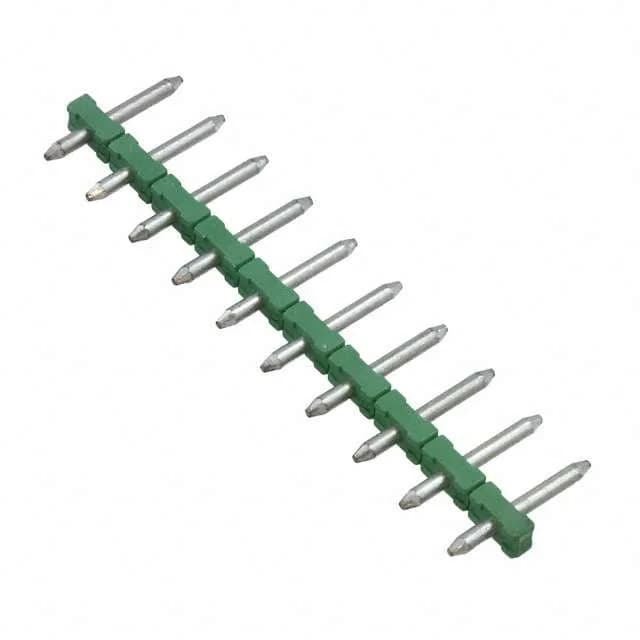

TE Connectivity AMP Connectors Buchanan header, order code 1-282832-0, 10 positions, single level, 0.197" (5.00mm) pitch, 12 A, 300 V, tin-plated mating finish, through-hole vertical, solder termination, unshrouded.
TE Buchanan 1-282832-0 Header, 10 Pos, 5.00mm
MPN1-282832-0
Active
TE Connectivity AMP Connectors Buchanan header, order code 1-282832-0, 10 positions, single level, 0.197" (5.00mm) pitch, 12 A, 300 V, tin-plated mating finish, through-hole vertical, solder termination, unshrouded.
$2.0770Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Unshrouded |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.079\" (2.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Side Stacking |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 1-282832-0 in this Buchanan series?
No same-series peer with a different position count is listed in the available data. The 1-282832-0 is a 10-position unshrouded header; other Buchanan headers at the same 5.00 mm pitch and through-hole vertical orientation may share the footprint but differ in position count — confirm the BOM position count before substituting.
What compliance documentation does TE Connectivity AMP Connectors provide for 1-282832-0?
RoHS and REACH compliance documentation is typically available from TE Connectivity; no specific compliance status is listed in the available data for this order code.
