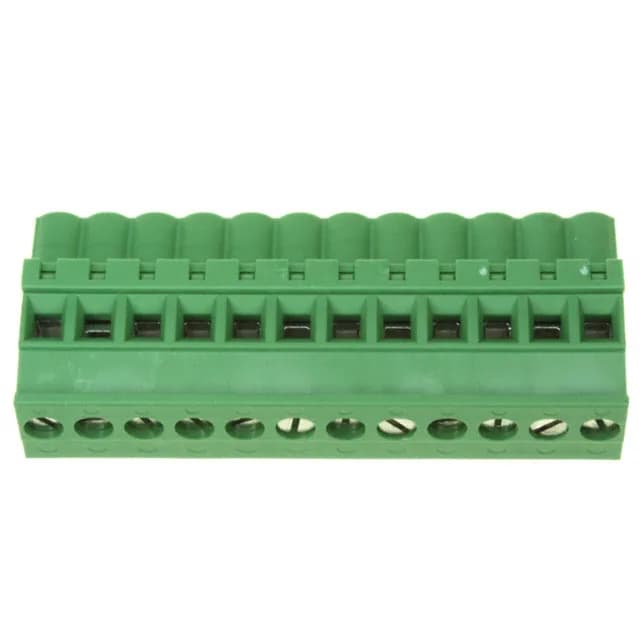

TE Connectivity AMP Connectors Buchanan plug, order code 1-284040-2, 12 positions, single level, 0.197" (5.00mm) pitch, 15 A, 300 V, tin-plated phosphor bronze contacts, free hanging, screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 270° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.984\" (25.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
The 1-284040-2 is the 12-position member of TE's Buchanan plug series, a single-level plug with female sockets rated 15 A at 300 V.
Green polyamide (PA66) housing rated UL94 V-0 with retention latches on the non-wire side and a 270° plug wire entry. Operating temperature range is -40°C to 110°C. Screw size is M3; insulation height is 0.984" (25.00 mm). The plug ships in bulk packaging.
The screw rising cage clamp accepts 12-30 AWG (0.05-3 mm²) wire with a 6-7.5 mm strip length.
