TE Connectivity AMP Connectors 1-284046-2 — Pin Headers, Sockets & Housings

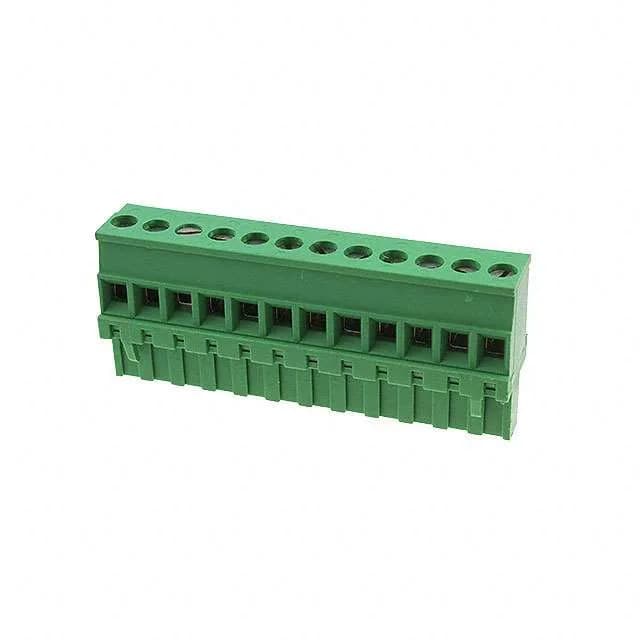

1-284046-2 Buchanan Plug, 12 Pos, 5.00mm, Screw Clamp

MPN1-284046-2
Active

Buchanan plug, order code 1-284046-2, 12 positions, single level, 0.197" (5.00mm) pitch, 15 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw rising cage clamp termination, green PA66 housing.

$9.3392Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-284046-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-284046-2 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL15 A
Plug wire entry90°
Wire strip length6-7.5mm
Wire gauge or range - AWG12-30 AWG
Wire gauge or range - mm20.05-3mm²
Operating temperature-40°C~110°C
ColorGreen
Contact materialPhosphor Bronze

All specifications

1-284046-2 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.984\" (25.00mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesRetention Latches (Wire Side)
Screw sizeM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions12
Positions per level12
Contact mating finishTin

Product details

12-position plug with 90° wire entry

The 1-284046-2 is the 12-position member of the Buchanan 284046 series of pluggable terminal blocks. It accepts 12-30 AWG (0.05-3 mm²) wire with a strip length of 6-7.5 mm. Rated 15 A at 300 V with tin-plated phosphor bronze contacts, the plug mates with the matching header and locks via retention latches on the wire side.

Housing material and flammability

The green housing is molded from polyamide (PA66) rated UL94 V-0. Operating temperature range is -40°C to 110°C.
