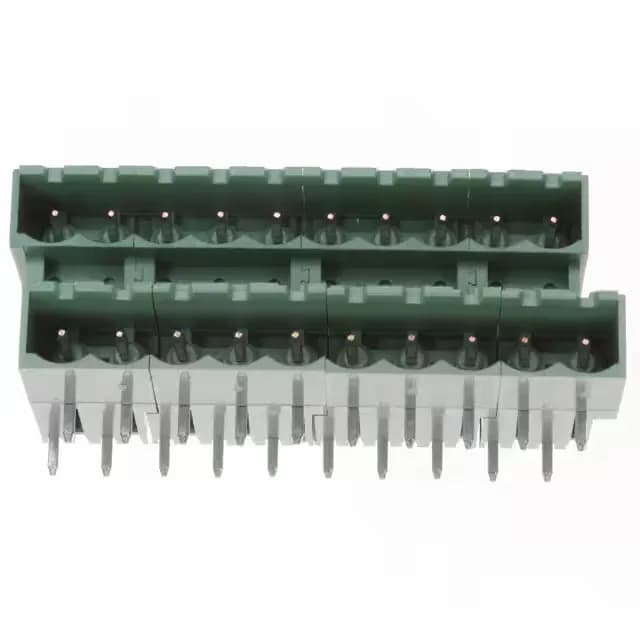

1-284061-0 TE Connectivity Buchanan Header, 20 Pos, 5.08mm

MPN1-284061-0
Active

TE Connectivity AMP Connectors Buchanan series, Header, Male Pins, Shrouded (4 Side), 20 positions, 0.200" (5.08mm) pitch, 2 levels, 12 A, 300 V, right-angle through-hole solder, green housing, UL94 V-0.

$6.5440Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-284061-0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-284061-0 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesBuchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL12 A
Operating temperature-40°C~110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.902\" (22.90mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)

All specifications

1-284061-0 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Number of levels2
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.138\" (3.50mm)
Positions20
Positions per level10
Contact mating finishTin

Product details

20-Position Shrouded Header for Power Distribution

The 1-284061-0 is a 20-position, 2-level shrouded header from TE's Buchanan series, built for wire-to-board power and signal connections. Its 0.200" (5.08mm) pitch gives each contact enough copper area to carry 12 A at 300 V — a practical ceiling for terminal-block-style distribution inside industrial control panels. Side interlocking features let you gang multiple headers into a single multi-position block without extra brackets — a Buchanan hallmark for panel builders.

Sourced through independent distribution channels per RFQ — no immediate stock-holding claim.

Tin-plated contacts mate with the matching Buchanan receptacle terminal.

Frequently asked questions

Where can I buy 1-284061-0 and how do I get a price?

The 1-284061-0 is available through our distribution desk. No stock-holding claim — availability is verified per inquiry.

What is the closest pin-compatible alternative to 1-284061-0?

No official pin-compatible replacement is listed by TE. The 20-position, 5.08mm pitch, 2-level, right-angle shrouded header is a specific configuration; verify the board footprint and mating half before substituting.

Can 1-284061-0 be used for power supply connections?

Yes — the 12 A per contact and 300 V rating suit low-to-medium power distribution within a control cabinet. The tin-plated contacts and UL94 V-0 housing are appropriate for fixed, non-cyclic power wiring.
