Through-hole vertical header with side interlock

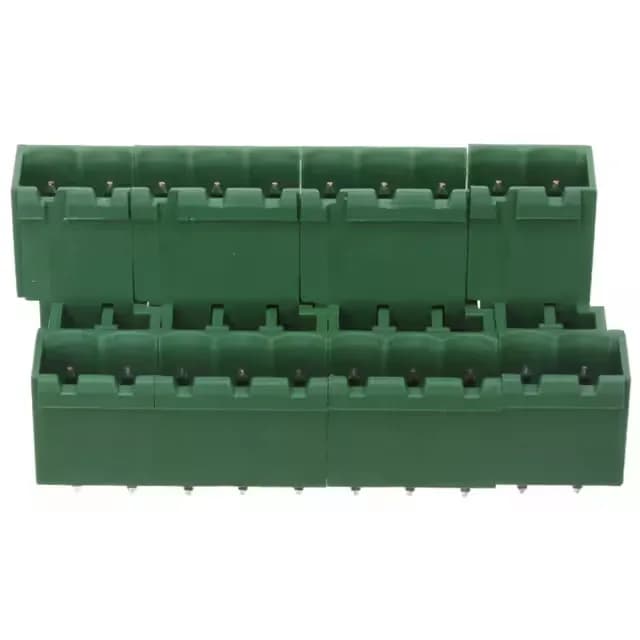

The 1-284065-0 is the 20-position, dual-level member of TE's Buchanan shrouded header family, terminated by through-hole solder in a vertical orientation.
1-284065-0 TE Buchanan Header, 20 Pos 5.08mm
MPN1-284065-0
Active
TE Connectivity AMP Connectors Buchanan header, order code 1-284065-0, 20 positions, dual level, 0.200" (5.08 mm) pitch, 12 A, 300 V, through-hole vertical, solder termination, tin-plated mating contacts.
$10.0236Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.869\" (22.08mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 20 |
| Positions per level | 10 |
| Contact mating finish | Tin |
