The 1-2842123-0: With 10 positions fully loaded, the header mates with a matching 10-way receptacle — confirm the circuit count on the BOM before committing the board layout.

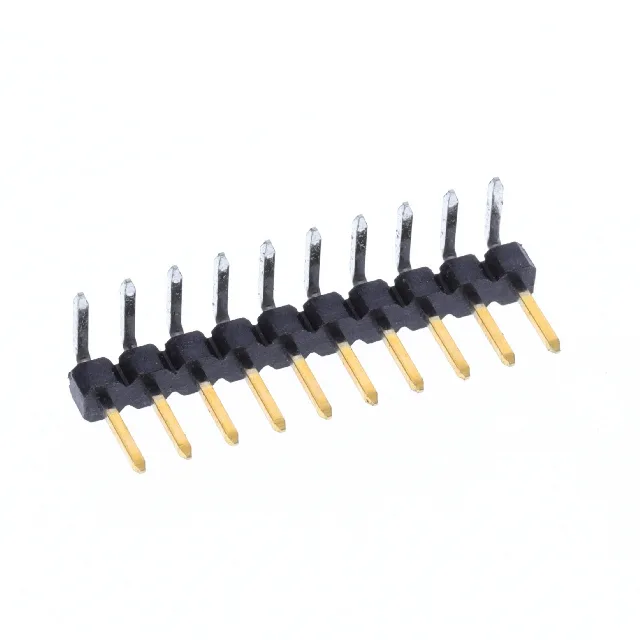

1-2842123-0 TE AMPMODU Header, 10 Pos, 2.00 mm, Right-Angle
MPN1-2842123-0
Active
TE Connectivity AMPMODU unshrouded header, 10 positions, 2.00 mm pitch, right-angle through-hole, male pin, gold mating finish, rated 2 A per contact at 125 VAC/DC.
$1.7300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Where can I buy 1-2842123-0?
Submit an RFQ for current availability and pricing — confirmed at quote time.
What is the pitch and position count of 1-2842123-0?
The pitch is 2.00 mm and it has 10 positions in a single row, all loaded.
