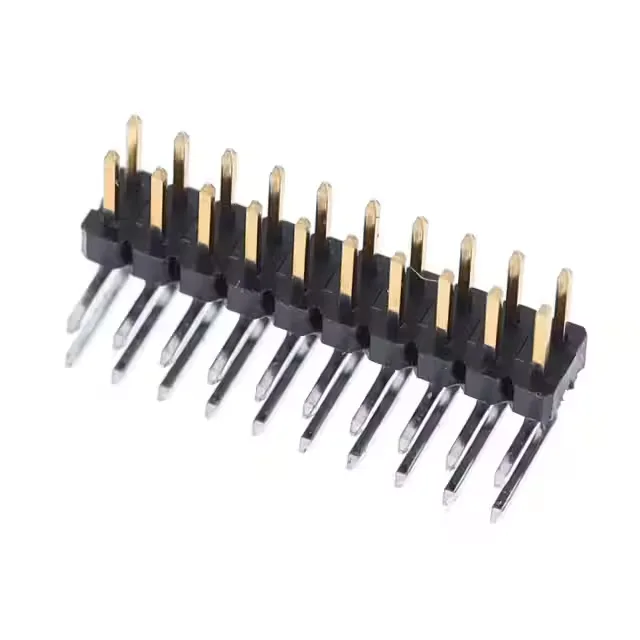

TE Connectivity AMPMODU series, 1-2842162-0, 20-position dual-row unshrouded header, 2.00mm pitch, right-angle through-hole, gold mating finish, 2A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 20 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
ROHS3 compliant.
Through-hole solder termination with 0.110" (2.79mm) post length — the right-angle pins exit the board edge and mate with a 2.00mm-pitch receptacle. Insulation height of 0.059" (1.50mm) keeps the header profile low above the board.
The mating pitch is 0.079" (2.00mm) with the same row spacing, giving a compact 2.00mm x 2.00mm grid for signal routing.
No official alternative or cross-reference is listed by TE. The 1-2842162-0 is a specific 20-position, 2.00mm pitch, right-angle, gold-plated variant; any replacement would need to match the same pitch, row count, and orientation.
