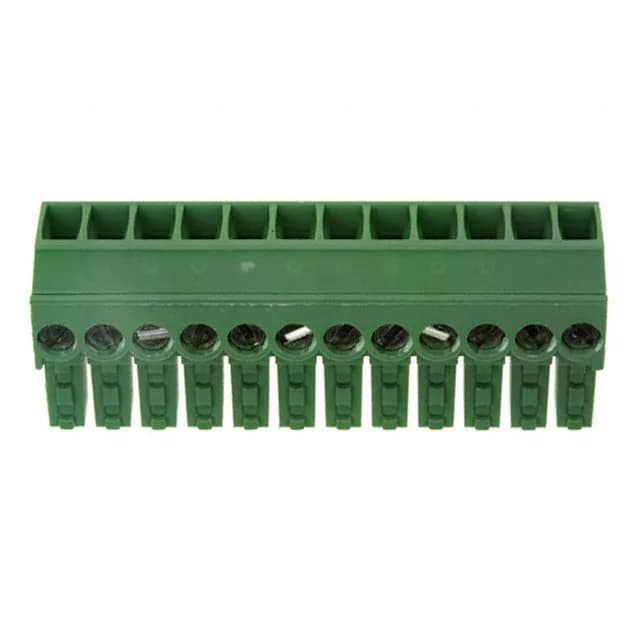

TE Connectivity Buchanan plug, order code 1-284506-2, 12 positions, single level, 0.138" (3.50mm) pitch, 11 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw - rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Plug wire entry | 180° |
| Wire strip length | 5-6mm |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Side Stacking |
| Screw size | M2 |
| Torque - screw | 0.31 Nm (2.7 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
The 1-284506-2 is the 12-position member of TE's Buchanan series of pluggable terminal blocks, a free-hanging female plug with screw-driven rising cage clamp termination.
The 12 positions are arranged on a single level at 0.138" (3.50mm) pitch. The side-stacking feature allows multiple plugs to be ganged side-by-side without losing pitch spacing, building a wider terminal block assembly from identical units.
The screw size is M2, with a torque specification of 0.31 Nm (2.7 Lb-In). The wire strip length is 5-6 mm.
