14-position plug with rising cage clamp

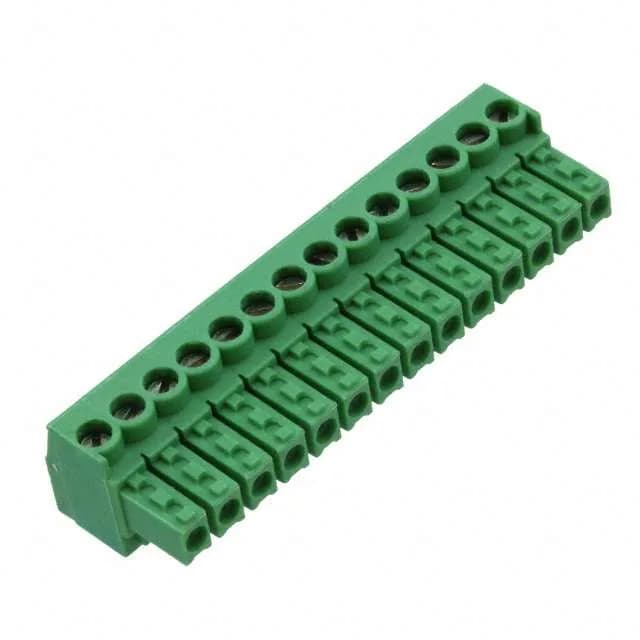

The 1-284506-4 is the 14-circuit member of the Buchanan 284506 series plug line, a free-hanging (in-line) female socket connector with 180° wire entry. Rated 11 A at 300 V with tin-plated phosphor bronze contacts, the plug uses a screw rising cage clamp termination accepting 14-30 AWG (0.05-2 mm²) wire.
Single-level layout and side stacking
The 1-284506-4 carries all 14 positions on a single level (positions per level: 14). The side stacking feature allows multiple plugs to be ganged side-by-side without increasing the board footprint.
