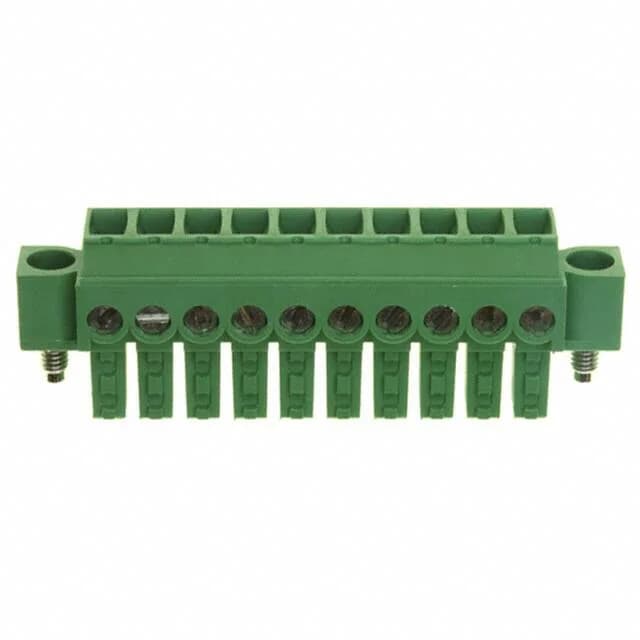

TE Connectivity AMP Connectors Buchanan series plug, 1-284511-0, 10-position female socket, 0.150" (3.81mm) pitch, 11 A at 300 V, screw rising cage clamp termination, free-hanging in-line, green nylon 6/6 housing rated UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Plug wire entry | 180° |
| Wire strip length | 5-6mm |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Mating Flange |
| Screw size | M2 |
| Torque - screw | 0.31 Nm (2.7 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Tin |
The 1-284511-0: The 0.150" (3.81mm) pitch sets the terminal spacing on the header and the wire-entry pitch, matching standard Buchanan fixed headers for control panels and industrial enclosures.
Features a mating flange for secure panel or header attachment. Insulation height is 0.437" (11.10 mm) above the board.
The recommended torque is 0.31 Nm (2.7 Lb-In) for the M2 screw. Over-torque can strip the nylon threads or damage the cage clamp.
