Shrouded 16-position header with mating flange
The 1-284519-6 is the 16-circuit member of TE's Buchanan shrouded header line, a through-hole vertical header with a mating flange for secure panel-side retention.

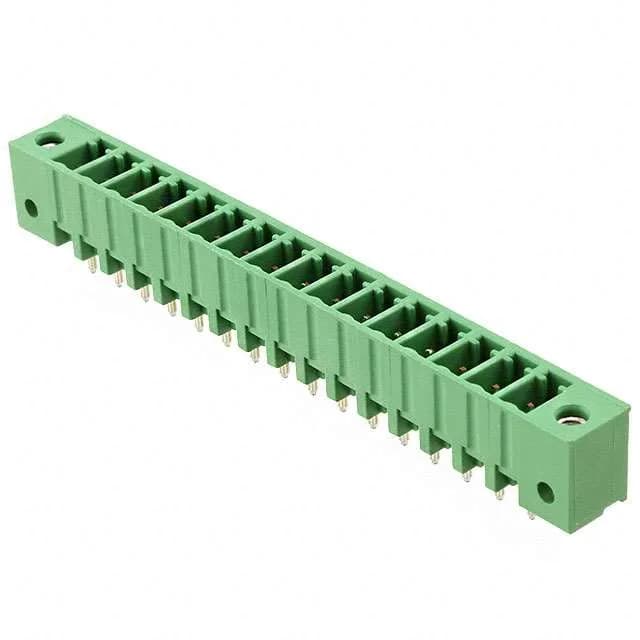

1-284519-6 TE Connectivity Buchanan Header, 16 Pos 3.81mm
MPN1-284519-6
Active
TE Connectivity AMP Connectors Buchanan header, order code 1-284519-6, 16 positions, single level, 0.150" (3.81mm) pitch, 11 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
$3.5975Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.362\" (9.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 16 |
| Positions per level | 16 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What compliance documentation does TE Connectivity AMP Connectors provide for 1-284519-6?
RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors per the series datasheet.
