2.00 mm pitch, 18 positions, right-angle board lock header

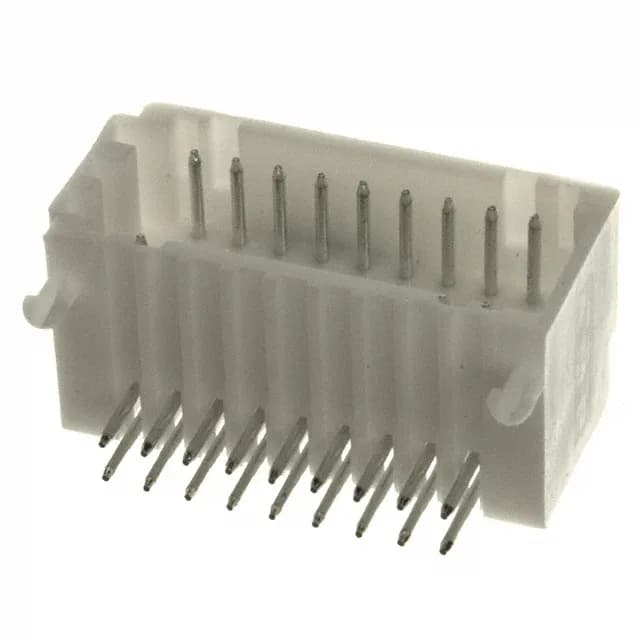

The 1-292138-8: The right-angle orientation and through-hole termination suit it for perpendicular PCB mounting where the cable exits parallel to the board. The shrouded 4-wall design with detent lock provides keyed mating and audible latching, reducing mis-mate risk in harness assembly. The board lock holds the header in place during wave solder and resists cable strain after assembly.
Board fit and key specs
The mating pin length is 0.185" (4.70 mm); the post length is 0.126" (3.20 mm). Insulation height is 0.437" (11.10 mm). Rated 125 VAC. Current rating varies by wire gauge — the limiting factor is the crimp terminal and wire size, not the header contact itself. Contact finish is tin on both mating and post sides.
