TE Connectivity AMP Connectors 1-292141-8 — Pin Headers

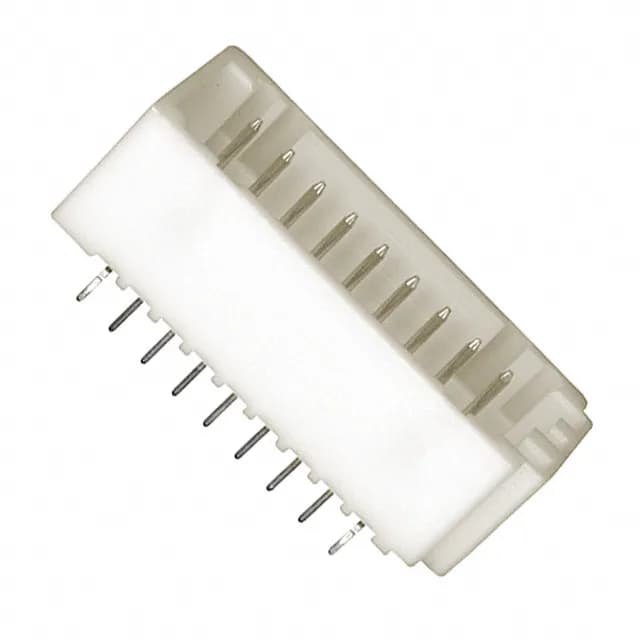

1-292141-8 TE Connectivity CT Header, 18 Pos, 2mm Pitch

MPN1-292141-8
Active

TE Connectivity AMP CT series, 1-292141-8, Board to Cable/Wire header, 18 circuits, 2.00mm pitch, shrouded - 4 wall, detent lock, through-hole solder, tin-plated male pins, UL94 V-0 natural PA66 housing.

$1.0300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-292141-8 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-292141-8 key specifications
ParameterValue
SeriesCT
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating125VAC
Current ratingVaries by Wire Gauge
Contact materialBrass
Insulation colorNatural
Insulation height0.295\" (7.50mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0

All specifications

1-292141-8 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeCircular
Rows2
Pitch0.079\" (2.00mm)
Positions18
Row spacing - mating0.256\" (6.50mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Overall contact length0.386\" (9.80mm)
Contact finish - matingTin
Contact length - mating0.185\" (4.70mm)

Product details

Board-fit and mating interface

The 1-292141-8 is an 18-position, dual-row header on 2.00mm pitch with a 6.50mm row spacing — the footprint fits standard TE CT IDC receptacles and crimp housings. The through-hole solder tails are 3.20mm long, suited for 1.6mm PCBs with standard wave-solder profiles. A full 4-wall shroud surrounds the 4.70mm-long mating pins, protecting them from bent contacts during blind mating and guiding the receptacle into alignment.

For applications requiring more cycles or exposure to corrosive atmospheres, consider the gold-plated variants in the CT series.

Frequently asked questions

Is 1-292141-8 RoHS compliant?

Yes, 1-292141-8 is RoHS3 compliant per the manufacturer's listing.

Can 1-292141-8 be used with TE CT IDC connectors?

Yes, the 2.00mm pitch, dual-row layout, and shrouded design are compatible with TE CT series IDC receptacles and crimp housings. The detent lock on the header mates with the corresponding latch on the receptacle.

What is the closest functional second-source for 1-292141-8?

The closest functional second-source within the same series is 1-292141-6, which is identical except for 16 positions instead of 18. Both are active, RoHS3 compliant, and share the same pitch, plating, and locking features.
