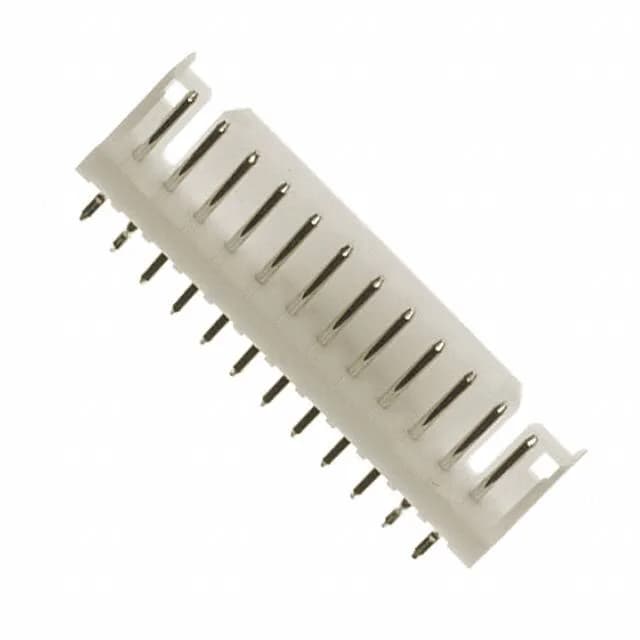

TE Connectivity AMP Connectors CT series header, 1-292161-2, board-to-cable/wire, 12 positions, single row, 2.00 mm pitch, shrouded - 3 wall, through hole, kinked pin solder termination, tin-plated contacts, detent lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.268\" (6.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.370\" (9.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
The 1-292161-2: Mates with the CT series receptacle housing that accepts the matching crimp terminal. The kinked pin solder termination gives a positive mechanical lock in the through-hole before reflow — the kink resists pushback during wave soldering.
The primary differentiator is position count — this is a 12-position variant. No direct pin-compatible replacement with a different order code is listed as an equivalent.
