13-Position 2mm Header with Detent Lock

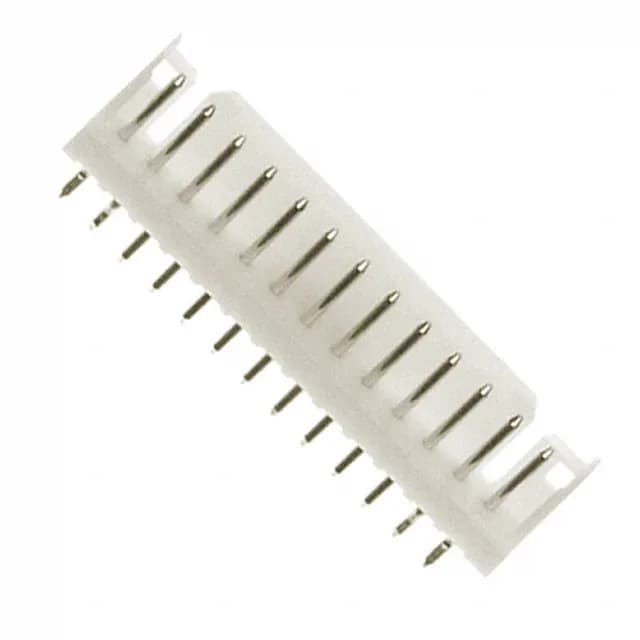

The 1-292161-3 is a 13-position, single-row vertical header from the TE Connectivity CT series, on a 2.00mm pitch. It mates with CT series wire-to-board receptacle housings, making it a straightforward choice for board-to-cable interconnects in control panels, sensors, and general-purpose equipment.
Shrouded Protection and Positive Locking
The detent lock gives an audible and tactile click when fully mated — you should hear it seat — and holds the connection against vibration.
Through-Hole Termination and Tin Plating
The insulation material is PA66 (Nylon 6/6) rated UL94 V-0.
Voltage Rating and Current Derating
Comparison with Right-Angle Sibling 1-292164-1
The closest functional second-source within the CT series is the 1-292164-1, which is a right-angle, 4-wall shrouded header with 11 positions. The 1-292161-3 offers 13 positions in a vertical orientation with 3-wall shrouding — the choice depends on your board layout and mating direction.
