TE Connectivity AMP Connectors 1-292161-4 — Pin Headers

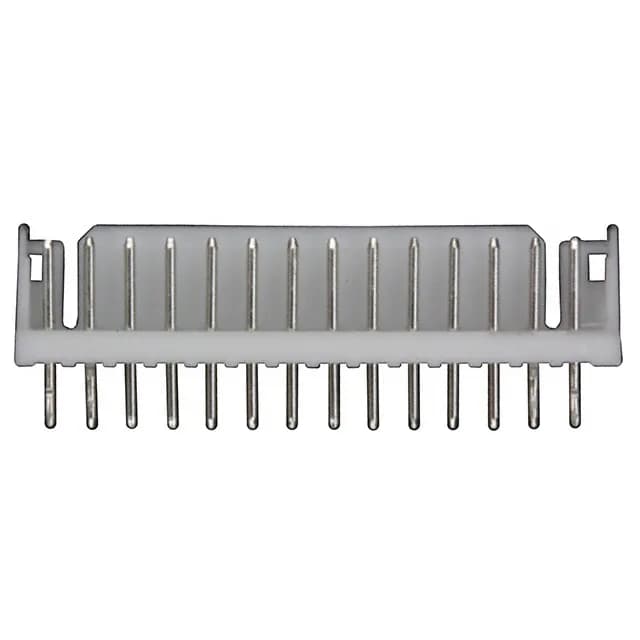

1-292161-4 TE Connectivity CT Header 14 Pos 2mm Pitch

MPN1-292161-4
Active

TE Connectivity AMP CT series, 1-292161-4, Board to Cable/Wire header, 14 positions, 2.00mm pitch, shrouded-3 wall, detent lock, through-hole, tin-plated male pins, UL94 V-0

$1.0600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-292161-4 key specifications
ParameterValue
SeriesCT
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating125VAC
Current ratingVaries by Wire Gauge
Contact materialBrass
Insulation colorNatural
Insulation height0.268\" (6.80mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0

All specifications

1-292161-4 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 3 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeCircular
Rows1
Pitch0.079\" (2.00mm)
Positions14
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Overall contact length0.370\" (9.40mm)
Contact finish - matingTin
Contact length - mating0.177\" (4.50mm)

Product details

14-position 2.00 mm pitch header for wire-to-board harnesses

The detent lock provides a positive retention force when mated with a CT series female housing, reducing the risk of disconnect under moderate vibration or cable tug.

RoHS compliant per TE's current declaration.

The 0.177" (4.50 mm) mating contact length provides adequate wipe for a reliable connection. The 0.126" (3.20 mm) post length suits through-hole boards; confirm the board thickness and hole diameter match the recommended footprint in the product drawing.

Frequently asked questions

Does the 1-292161-4 mate with TE CT series female housings?

Yes. The 1-292161-4 is the pin header half of the CT series wire-to-board system. It mates with CT series female housings that accept the corresponding crimp terminals. The detent lock engages with the housing latch for positive retention.

Is there a direct replacement for the 1-292161-4?

No official direct replacement is listed. The base product number is 292161; any alternative would need to match the 14-position, 2.00 mm pitch, shrouded-3 wall, detent lock, and through-hole termination. Cross-reference against TE's CT series catalog for other options.
