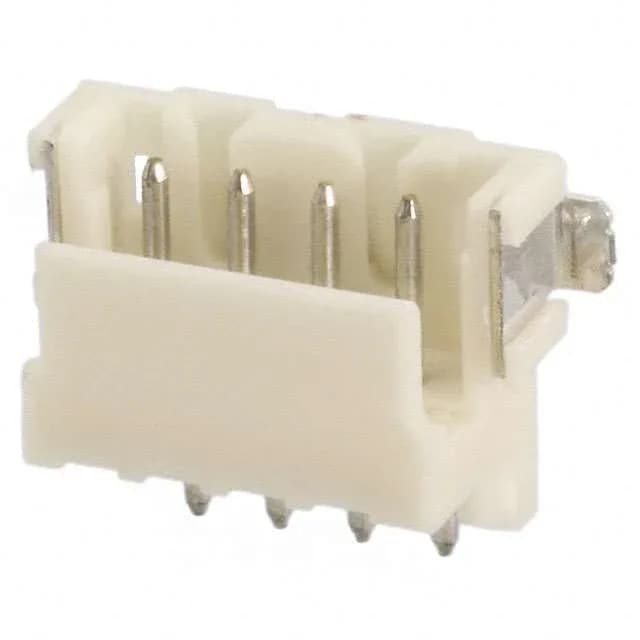

TE Connectivity AMP Connectors 1-292173-4 — Pin Headers

1-292173-4 TE Connectivity AMP Connectors 4-Pin 2mm SMT

MPN1-292173-4
Active

TE Connectivity AMP Connectors, CT series, 4-position single-row header, 2.00mm pitch, surface-mount right-angle, shrouded 4-wall, detent lock, tin-plated male square pins, UL94 V-0 natural PA6T housing.

$1.0613Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-292173-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-292173-4 key specifications
ParameterValue
SeriesCT
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating125VAC
Current ratingVaries by Wire Gauge
Contact materialBrass
Insulation colorNatural
Insulation height0.228\" (5.80mm)
Insulation materialPolyamide (PA6T), Nylon 6T, Glass Filled
Material flammability ratingUL94 V-0

All specifications

1-292173-4 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions4
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.165\" (4.20mm)

Product details

The 1-292173-4: The natural colour is the unmodified resin; no pigment added.

ROHS3 compliant — the part meets the latest EU restriction of hazardous substances directive, covering all ten restricted substances including the four phthalates.

Mating Half — the CT Series Housing and Terminal

This header mates with a CT series receptacle housing (e.g., 1-292161-4 for 4 positions) and uses the matching crimp terminal (e.g., 1-292250-0 for 22-24 AWG). It is three parts, not one — the header, the housing, and the terminal must all be specified on the BOM. Confirm the position count matches — 4 positions on both sides.

Frequently asked questions

Where can I buy 1-292173-4?

Submit an RFQ for this part number.

What is the mating connector for 1-292173-4?

The mating half is a CT series receptacle housing, 4-position, 2.00 mm pitch, with the corresponding crimp terminal. Example housing order code: 1-292161-4; example terminal: 1-292250-0 for 22-24 AWG wire.

Is 1-292173-4 RoHS compliant?

Yes, it is ROHS3 compliant — meeting the latest EU directive including all ten restricted substances.
