Pitch, Positions, and Contact Finish
SMT Assembly Aids and Housing Ratings
The housing is glass-filled PA6T (Nylon 6T) rated UL94 V-0, a standard flame-class requirement for connectors inside equipment enclosures.

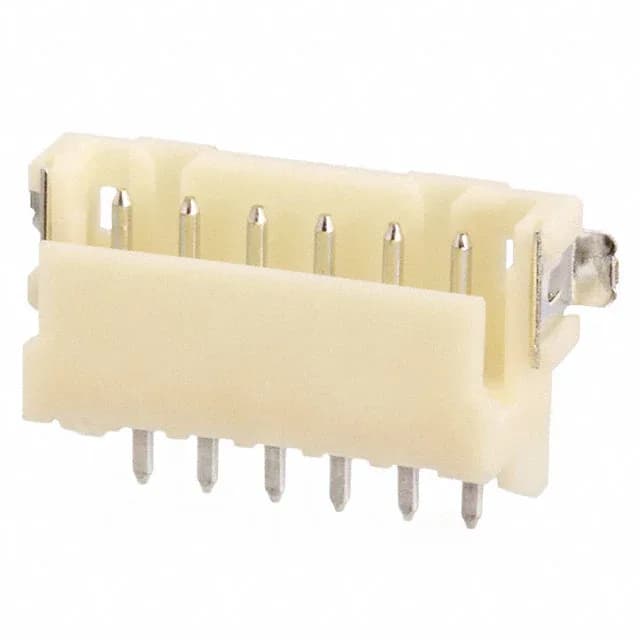

1-292173-6 TE Connectivity CT Header SMD R/A 6 Pos 2mm
MPN1-292173-6
Active
TE Connectivity AMP Connectors CT series, Board to Cable/Wire header, 6 circuits, 2.00mm pitch, surface-mount right-angle, shrouded 4-wall, detent lock, tin-plated contacts, UL94 V-0 housing
$1.4200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.165\" (4.20mm) |
Product details
Frequently asked questions
Is 1-292173-6 compatible with 2.00mm pitch cable assemblies?
Yes — the 2.00mm mating pitch is the standard for TE's CT series wire-to-board connectors. The shrouded 4-wall housing guides the mating cable plug, and the detent lock secures the pair. Confirm the mating half uses the same pitch and keying.
