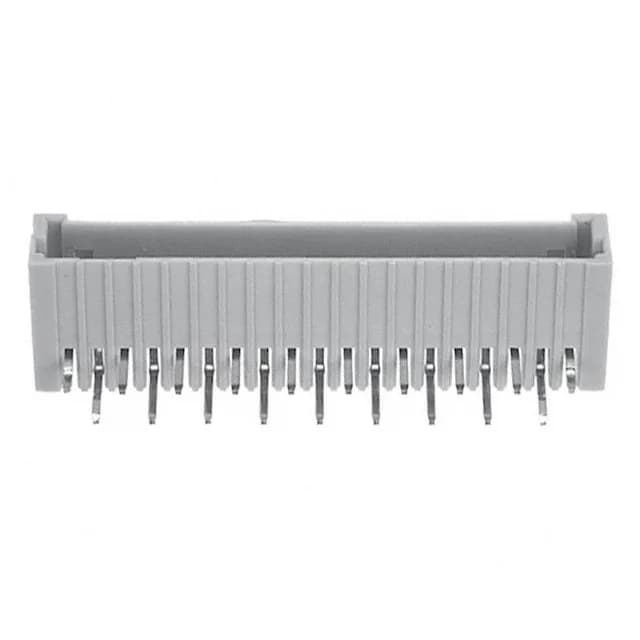

TE Connectivity AMP Connectors 1-292206-9
MPN1-292206-9
Active
$0.9438Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 19 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
