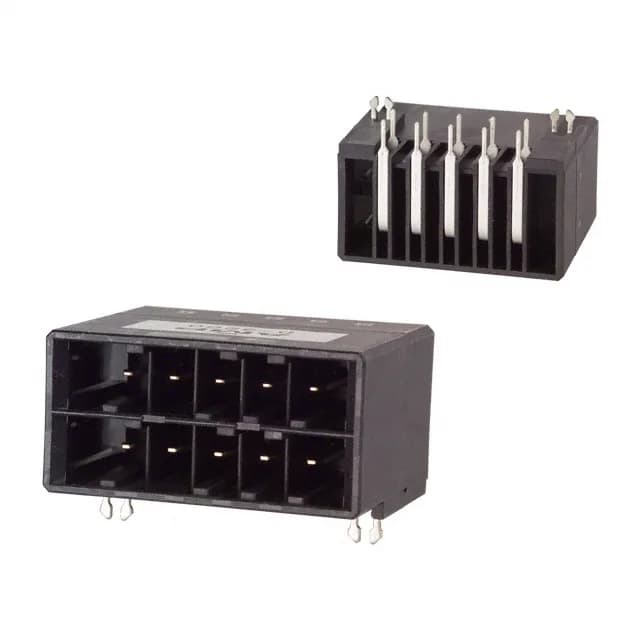

TE Connectivity AMP Dynamic D-3200 series header, 1-316080-3, 10 positions, 5.08mm pitch, right-angle through-hole, gold-plated mating contacts, shrouded 4-wall, board lock, rated 600V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.668\" (16.97mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 10 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-316080-3 is a 10-position, dual-row header from TE's Dynamic D-3200 series, with a 5.08mm pitch and right-angle through-hole termination.
The post length is 0.150" (3.81mm), which fits standard 1.6mm board thicknesses with enough protrusion for a reliable solder fillet.
Yes, the 1-316080-3 is RoHS compliant per TE Connectivity's compliance documentation.
