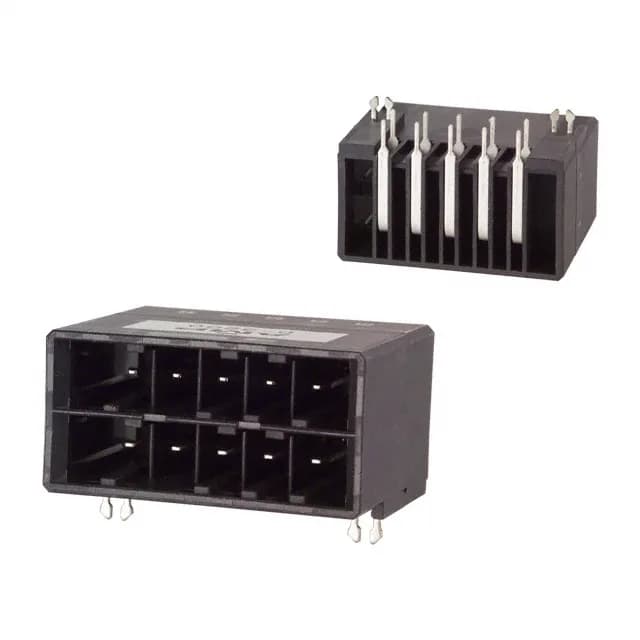

1-316080-5 TE Connectivity Dynamic D-3200 Header 10 Pos

MPN1-316080-5
Active

TE Connectivity AMP Connectors Dynamic D-3200 series, 1-316080-5, Board to Board or Cable header, 10 positions, 0.200" (5.08mm) pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Detent Lock, Board Lock, UL94 V-0, -55°C ~ 105°C, 600V, Tin contacts.

$4.4800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-316080-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-3200
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-316080-5 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.668\" (16.97mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

1-316080-5 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.200\" (5.08mm)
Positions10
Row spacing - mating0.300\" (7.62mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin
Contact finish thickness - mating78.7µin (2.00µm)

Product details

What this 10-position header is built for

The 1-316080-5 is a 10-position, 2-row, right-angle header from TE's Dynamic D-3200 series, with a 0.200" (5.08mm) mating pitch and 0.300" (7.62mm) row spacing.

Why the 5.08mm pitch and 600V rating matter for your board

At 5.08mm pitch, this header gives you room to route wider traces or higher-voltage creepage distances compared to the 2.50mm pitch of the Dynamic D-3200 sibling 1-1871673-2. That extra spacing directly supports the 600V rating — a level most 10-position headers don't carry.

Supplied in tube packaging.

Frequently asked questions

What is the mating connector for 1-316080-5?

This header mates with Dynamic D-3200 series receptacles (socket housings with crimp terminals). Confirm the circuit count and pitch match before committing the BOM line.
