TE Connectivity AMP Connectors 1-316081-2 — Pin Headers, Sockets & Housings

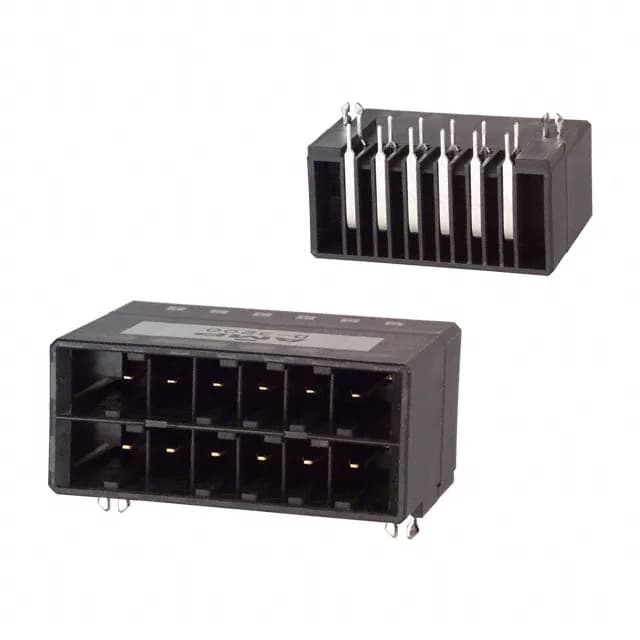

1-316081-2 TE Dynamic D-3200 Header, 12 Pos, 5.08mm

MPN1-316081-2
Active

TE Connectivity AMP Connectors Dynamic D-3200 series header, 12 positions, 2-row, 5.08mm pitch, right-angle through-hole, shrouded 4-wall, gold mating finish 15µin, board lock, UL94 V-0, -55°C to 105°C, 600V rating.

$7.0500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-316081-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-316081-2 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.668\" (16.97mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

1-316081-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.200\" (5.08mm)
Positions12
Row spacing - mating0.300\" (7.62mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingGold
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board Lock and Right-Angle Orientation for Industrial Harness Routing

The 1-316081-2: Its 5.08mm pitch and 7.62mm row spacing set the PCB footprint and per-contact current ceiling — the gold mating finish (15µin) supports repeated mating cycles typical of field-serviceable assemblies.

Active Production and Sourcing for BOM Continuity

Mating Half and Termination Compatibility

This header mates with Dynamic D-3200 series receptacles that accept crimp terminals — the tab contacts (rectangular shape) on the header engage with the receptacle's socket contacts.

Frequently asked questions

Where can I buy 1-316081-2 and how do I get a price?

No stock-holding claim is made on this listing.

What is the mating connector for 1-316081-2?

The 1-316081-2 mates with Dynamic D-3200 series receptacles that accept crimp terminals.
